AMBIENT AIR MONITORING SOLUTIONS

Designed for gas and particle pollutant measurements to better understand atmospheric chemistry and environmental public health, these internet enabled instruments provide a near-instantaneous look at changing pollutant concentrations, with peripheral sensors for measurement of environmental and meteorological parameters.

Ambient Air Monitors

Particles Plus

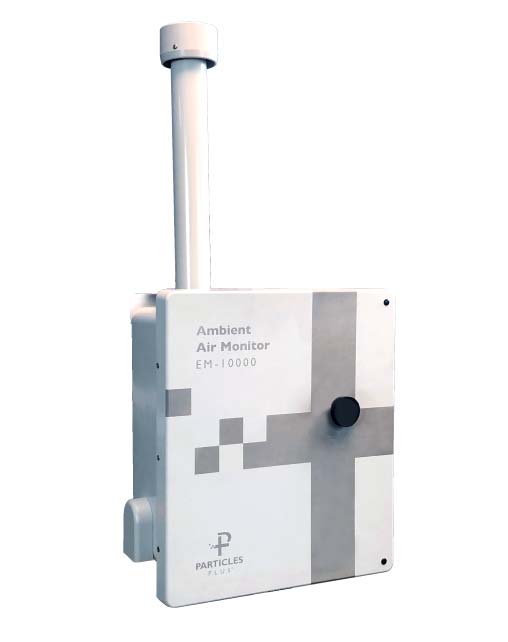

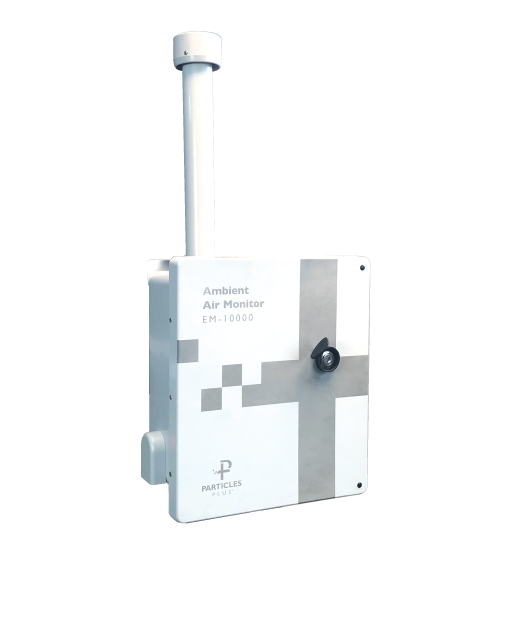

Ambient Air Monitor

Model EM-10000

The Particles Plus EM-10000 is designed for outdoor particulate and gas monitoring. These robust monitors provide reliable, accurate measurement of airborne contamination allowing for the detection of environmental and public health concerns. The first real time monitor to provide 6 accurate particulate size channels.

Realtime Data
6 particle size channels recorded by the EM-10000 Monitor are stored in an internal non-volatile memory at user-defined data sampling rates (1 second to -99 hours). The high time-resolution of the Model EM-10000 measurements provides a near-instantaneous look at changing airborne particulate concentrations, leading to a well-defined model of local point source influences that may disproportionately affect air quality.

Internet-Enabled
Particles Plus systems are configured to allow users to push real-time data to the cloud where sensor outputs can be visualized by authorized stakeholders.

Fully Integrated Low-Cost Air Quality Sensor System
Integration of additional sensors for measurement of environmental and meteorological parameters (relative humidity, temperature, barometric pressure, (optional) carbon dioxide – CO2, and total volatile organic compounds – TVOC) offers a more complete view of air quality.

Airborne Pollution and Environmental Research
Perimeter or Fence-line Monitoring for Construction, Remediation or Hazardous Waste Sites
Mine and Quarry Fence-line Monitoring for dust control operations
City Wide or Community Air Pollution Monitoring
Roadside Emissions Monitoring
Medical Facilities Property Monitoring
Power Line Wild-Fire Monitoring
Environmental Disasters
Monitor for 24 hours a day, 7 days a week, 365 days a year
Concurrent measurement of multiple, user selectable PM sizes from 0.3um to 10 µm including TPM of particles up to 25 µm
Closed-loop humidity control for incoming airstream (to provide more accurate particulate sizing)
Closed-loop condensation control within the enclosure
Perform in-line gravimetric sample collection for correction reference calibration
ULTRAGUARD® Fiberglass reinforced polyester NEMA 4 rated outdoor tamper-proof enclosure with internal thermal control
Optional pole or tripod mount options
Optional Cloud based data management software subscription available for remote
Size Range:0.3 (300 nm) to 25 µm
Number of Channels6 channels
Concentration Limit15,000,000 Particles/ft³ @ 10% coincidence loss (~6.5 mg/m³)
Light SourceLong life laser diode
Count ModesCumulative/differential count/m³ & count/ft³, and mass concentration (PM)
CalibrationNIST traceable
Vacuum PumpInternal rotary vane vacuum pump - 0.1 CFM (2.83 LPM) Flow rate
AirflowInternally monitored flow control
Audible AlarmOptional external Piezo 120 dB sounder
Communication ModesInternal Ethernet and USB - Allows for variety of connectivity options
Optional Communication ModesWireless 802.11 b/g, RS485 or RS232, Ethernet Fiber Bridge, 4G Cellular
Environmental SensorTemperature and relative humidity probe: -4º to 122ºF (-20º to 50ºC) ±1ºF (0.5ºC), 0 -100% ± 2%RH
Optional SensorsNDIR CO2 (0-5000 ppm, resolution 1 ppm, accuracy ±1% FS, Response rate 20 seconds) TVOC PID, 0-50 ppm / min. detection level 5 ppb, accuracy ±1.5%, Response rate <3 seconds
AlarmAlarms for all particle values, environmental sensors, flow and sensor failure
CalibrationParticle sensor recommended once per year
User Calibration Field Calibration of Temperature, Humidity, CO2 and TVOC possible with included utility software
External SurfaceULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
Dimensions (L x W x H)10.6” x6.01” x 12.14” (26.9 cm x 15.2 cm x 30.8356 cm) includes barb fittings
Weight12.5 lbs. (5.66 kg)
AccessoriesQuick start guide, operating manual on USB flash drive, mounting feet
Optional AccessoriesPrinted manual, data cable, pole mounting hardware kit
Buffer MemoryInternal 45,000 sample records (rotating buffer) including particle count data and environmental data
Sample Time1 second to 99 hours
Power110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions-4º to 122ºF (-20º to 50ºC) / 20% to 95% non-condensing
Warranty1 Year, Extended warranties available
