Particles Plus®

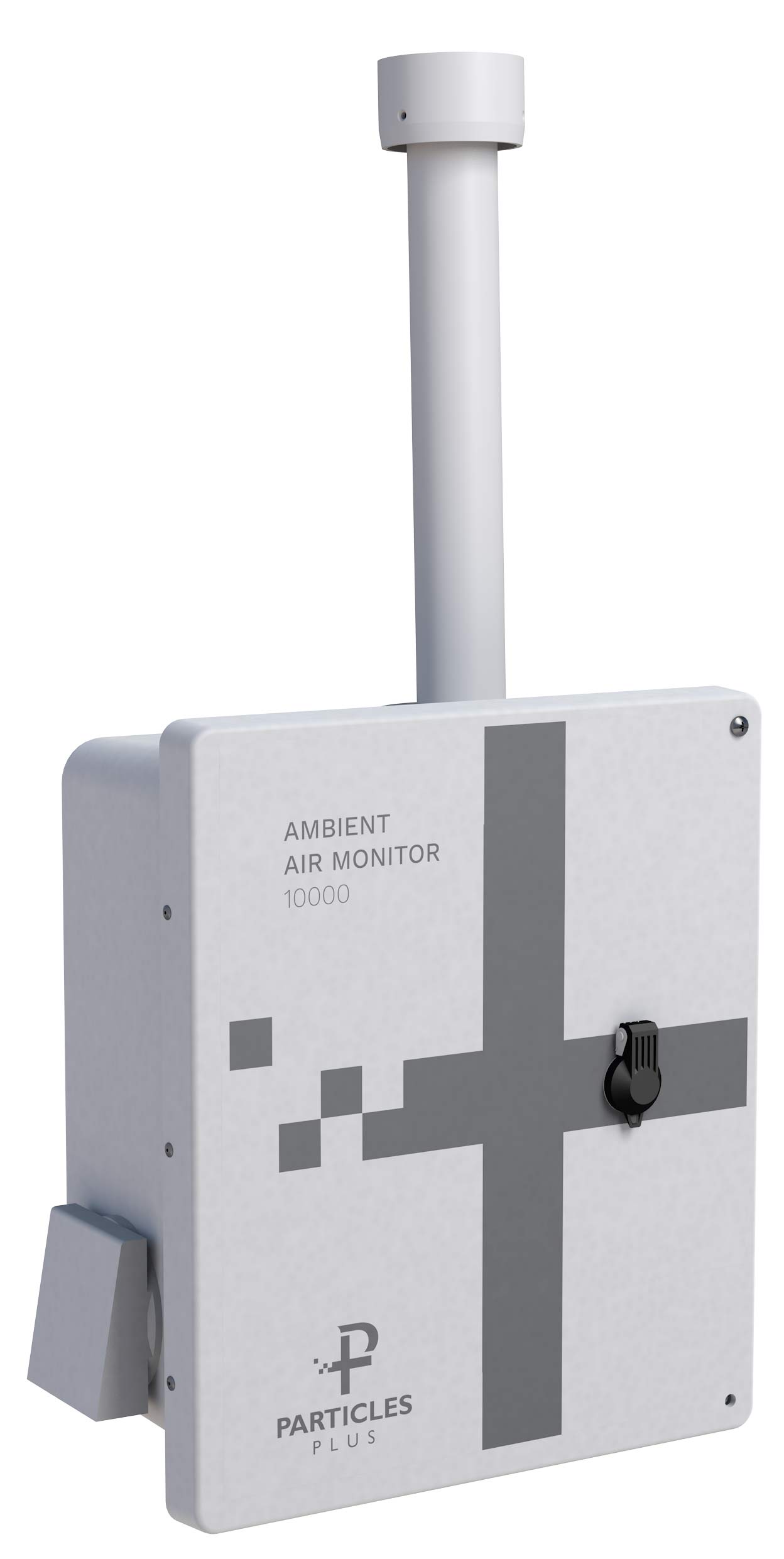

Ambient Air Monitor
Model 10000
The Particles Plus® 10000 is designed for outdoor particulate and gas monitoring. These robust monitors provide reliable, accurate measurement of airborne contamination allowing for the detection of environmental and public health concerns. The first real time monitor to provide 6 accurate particulate size channels.
Realtime Data
6 particle size channels recorded by the 10000 Monitor are stored in an internal non-volatile memory at user-defined data sampling rates (1 second to -99 hours). The high time-resolution of the Model 10000 measurements provides a near-instantaneous look at changing airborne particulate concentrations, leading to a well-defined model of local point source influences that may disproportionately affect air quality.
Internet-Enabled
Particles Plus® systems are configured to allow users to push real-time data to the cloud where sensor outputs can be visualized by authorized stakeholders.
Fully Integrated Low-Cost Air Quality Sensor System
Integration of additional sensors for measurement of environmental and meteorological parameters (relative humidity, temperature, barometric pressure, (optional) carbon dioxide – CO2, and total volatile organic compounds – TVOC) offers a more complete view of air quality.
| Airborne Pollution and Environmental Research |
| Perimeter or Fence-line Monitoring for Construction, Remediation or Hazardous Waste Sites |
| Mine and Quarry Fence-line Monitoring for dust control operations |
| City Wide or Community Air Pollution Monitoring |
| Roadside Emissions Monitoring |
| Medical Facilities Property Monitoring |
| Power Line Wild-Fire Monitoring |
| Environmental Disasters |
| Monitor for 24 hours a day, 7 days a week, 365 days a year |
| Concurrent measurement of multiple, user selectable PM sizes from 0.3um to 10 µm including TPM of particles up to 25 µm |
| Closed-loop humidity control for incoming airstream (to provide more accurate particulate sizing) |
| Closed-loop condensation control within the enclosure |
| Perform in-line gravimetric sample collection for correction reference calibration |
| ULTRAGUARD® Fiberglass reinforced polyester NEMA 4 rated outdoor tamper-proof enclosure with internal thermal control |
| Optional pole or tripod mount options |
| Optional Cloud based data management software subscription available for remote |
| Size Range: | 0.3 (300 nm) to 25 µm |
| Number of Channels | 6 channels |
| Concentration Limit | 15,000,000 Particles/ft³ @ 10% coincidence loss (~6.5 mg/m³) |
| Light Source | Long life laser diode |
| Count Modes | Cumulative/differential count/m³ & count/ft³, and mass concentration (PM) |
| Calibration | NIST traceable |
| Vacuum Pump | Internal rotary vane vacuum pump - 0.1 CFM (2.83 LPM) Flow rate |
| Airflow | Internally monitored flow control |
| Audible Alarm | Optional external Piezo 120 dB sounder |
| Communication Modes | Internal Ethernet and USB - Allows for variety of connectivity options |
| Optional Communication Modes | Wireless 802.11 b/g, RS485 or RS232, Ethernet Fiber Bridge, 4G Cellular |
| Environmental Sensor | Temperature and relative humidity probe: -4º to 122ºF (-20º to 50ºC) ±1ºF (0.5ºC), 0 -100% ± 2%RH |
| Optional Sensors | NDIR CO2 (0-5000 ppm, resolution 1 ppm, accuracy ±1% FS, Response rate 20 seconds) TVOC PID, 0-50 ppm / min. detection level 5 ppb, accuracy ±1.5%, Response rate <3 seconds |
| Alarm | Alarms for all particle values, environmental sensors, flow and sensor failure |
| Calibration | Particle sensor recommended once per year |
| User Calibration | Field Calibration of Temperature, Humidity, CO2 and TVOC possible with included utility software |
| External Surface | ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover |
| Dimensions (L x W x H) | 10.6” x6.01” x 12.14” (26.9 cm x 15.2 cm x 30.8356 cm) includes barb fittings |
| Weight | 12.5 lbs. (5.66 kg) |
| Accessories | Operating manual on USB flash drive, mounting feet |
| Optional Accessories | Printed manual, data cable, pole mounting hardware kit |
| Buffer Memory | Internal 45,000 sample records (rotating buffer) including particle count data and environmental data |
| Sample Time | 1 second to 99 hours |
| Power | 110 to 240 VAC 50/60 Hz universal in-line power supply |
| Operating Conditions | -4º to 122ºF (-20º to 50ºC) / 20% to 95% non-condensing |
| Warranty | 1 year limited warranty. Extended warranties available. |
