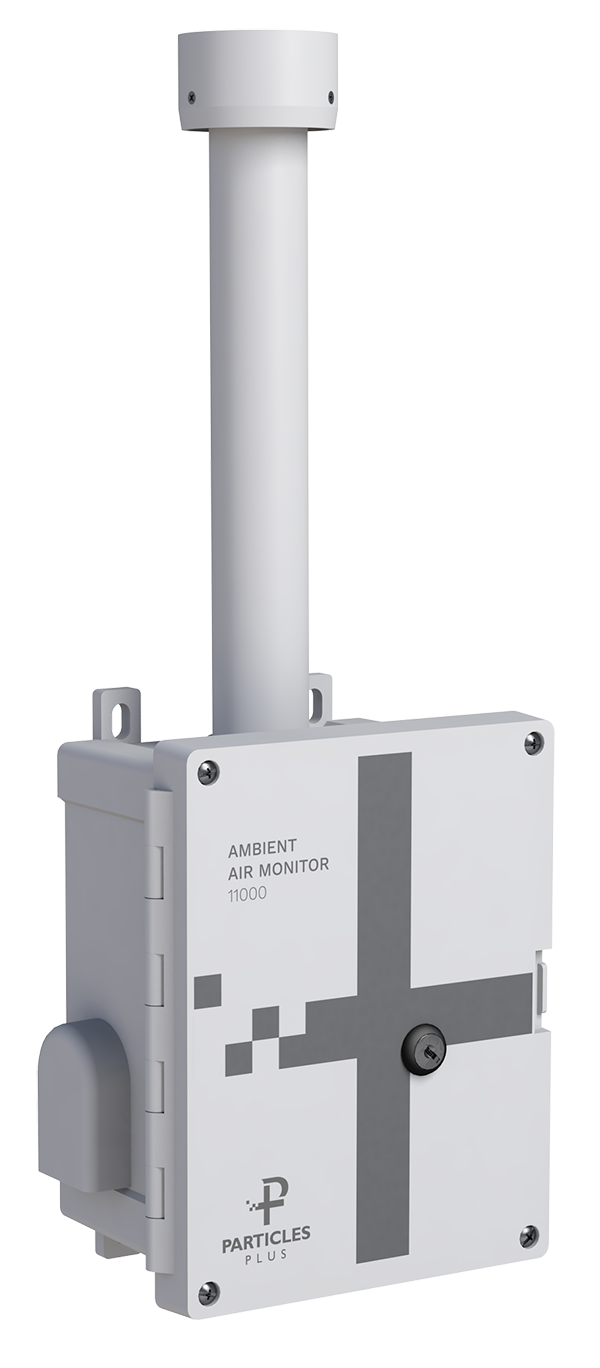

Ambient Air Monitor
Model 11000
The 11000 is a low cost, high-accuracy dust monitor designed for outdoor particulate and gas monitoring. These robust monitors provide reliable, accurate measurement of airborne contamination allowing for the detection of environmental and public health concerns. The first real time monitor to provide 30 accurate particulate size channels at higher concentrations.
Realtime Data
30 particle size channels recorded by the 11000 Monitor are stored in an internal 65,000 record non-volatile memory at user-defined data sampling rates (1 second to 99 hours). The high time-resolution of the Model 11000 measurements provides a near-instantaneous look at changing airborne particulate concentrations, leading to a well-defined model of local point source influences that may disproportionately affect air quality.
Highest Concentration OPC based Monitor
The 11000 series has the highest concentration available in the market for an optical particle counter based ambient air monitor. With a flow rate of 1.2 LPM the sensor is capable of accurately counting and sizing particles up to 30,000,000 particles/ft³ (1,000 particles/cm³). The monitor can handle TPM concentrations up to 20,000 μg/m³ before experiencing coincidence loss.
| Airborne Pollution and Environmental Research |
| Perimeter or Fence-line Monitoring for Construction, Remediation or Hazardous Waste Sites |
| Mine and Quarry Fence-line Monitoring for dust control operations |
| City Wide or Community Air Pollution Monitoring |
| Roadside Emissions Monitoring |
| Medical Facilities Property Monitoring |
| Power Line Wild-Fire Monitoring |
| Environmental Disasters |
| Monitor for 24 hours a day, 7 days a week, 365 days a year |
| Concurrent measurement of multiple, user selectable PM sizes from 0.3um to 10 µm including TPM of particles up to 25 µm |
| Closed-loop humidity control for incoming airstream (to provide more accurate particulate sizing) |
| Closed-loop condensation control within the enclosure |
| Perform in-line gravimetric sample collection for correction reference calibration |
| Aerosol Concentration Range of 0.01 to 20,000 ug/m3 |
| ULTRAGUARD® Fiberglass reinforced polyester NEMA 4 rated outdoor tamper-proof enclosure with internal thermal control |
| Optional pole or tripod mount options |
| Optional Cloud based data management software subscription available for remote |
| Size Range: | 0.3 (300 nm) to 25 µm |
| Size Channels | Factory calibrated at 0.3, 0.5, 0.7, 1.0, 2.5, 5.0µm variable binning |
| Flow Rate / Accuracy | 1.2 LPM (0.04 CFM) / +/- 3% |
| Aerosol Concentration Range | 0.01 to 47,000 µg/m³ (2500 particles /cm³, 70,000,000 particles/ft³) |
| Light Source | Long life laser diode |
| Resolution | 0.0003 µg/m3 |
| Zero Stability | No appreciable drift |
| Count Modes | Cumulative/differential count/m³ & count/ft³, and mass concentration (PM) |
| Log Interval | Minimum 1 second with no hold time, maximum 99 hours |
| Calibration | NIST traceable |
| Internal Vacuum Pump | Internal pump with automatic flow control |
| Number of Channels | 6 to 30 |
| Communication Modes | MODBUS over RS485 or USB direct (USB to IMS-9K software utility) |
| Optional Communication Modes | Future Plug & Play (optional) Communication Modules - Wi-Fi, LoRaWAN and Ethernet |
| Environmental Sensor | (Optional) Temperature +/-2C, Relative Humidity +/-9%, co2 +/-50ppm, Barometric Pressure +/-2.5mbar |
| Alarm | Alarms for all particle values, environmental sensors, flow and sensor failure |
| Optional Sensors | NDIR CO2 (0-5000 ppm, resolution 1 ppm, accuracy ±1% FS, Response rate 20 seconds) TVOC PID, 0-50 ppm / min. detection level 5 ppb, accuracy ±1.5%, Response rate <3 seconds |
| Alarm | Alarms for all particle values, environmental sensors, flow and sensor failure |
| Instrument Calibration | Particle sensor recommended once per year |
| User Calibration | Field Calibration of Temperature, Humidity, CO2 and TVOC possible with included utility software |
| External Surface | ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover |
| Enclosure | Temperature controlled ventilation blower and heated backplate for environmental extremes |
| Heated Inlet | Humidity sensor controlled heated inlet to remove hydroscopic effects |
| Dimensions (L x W x H) | 5.5” x 8.4” x 21” (13.9 cm x 21.3 cm x 53.3 cm) includes barb fittings |
| Weight | 5.7 lbs. (2.6 kg) |
| Accessories | Quick start guide, operating manual on USB flash drive, mounting feet |
| Optional Accessories | Printed manual, data cable, pole mounting hardware kit |
| Data Storage | Internal 65,000 sample records (rotating buffer) including particle count data and environmental data |
| Sample Time | 1 second to 99 hours |
| Power | 110 to 240 VAC 50/60 Hz universal in-line power supply |
| Operating Conditions | -4º to 122ºF (-20º to 50ºC) / 20% to 95% non-condensing |
| Warranty | 1 year limited warranty. Extended warranties available. |
