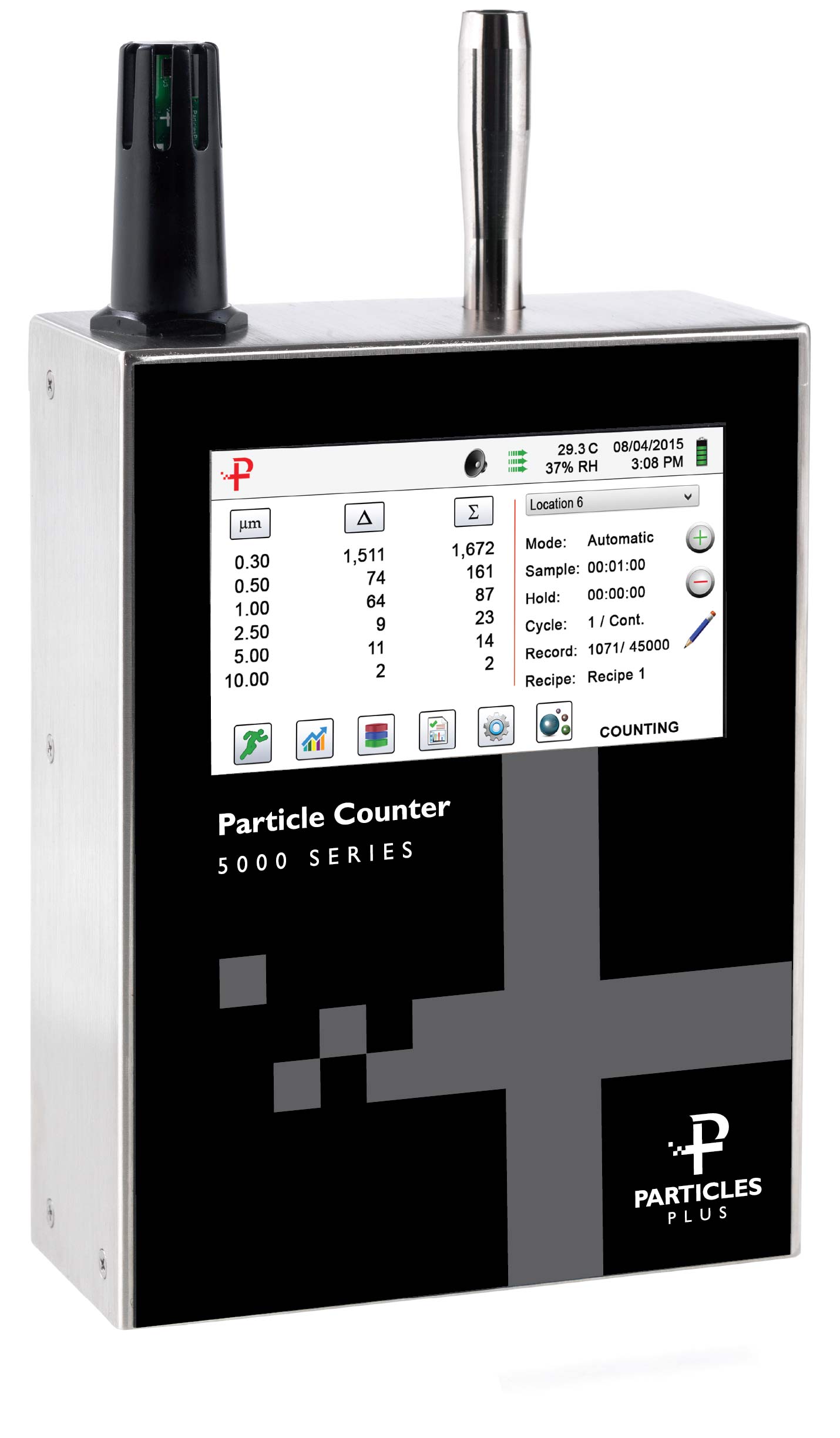

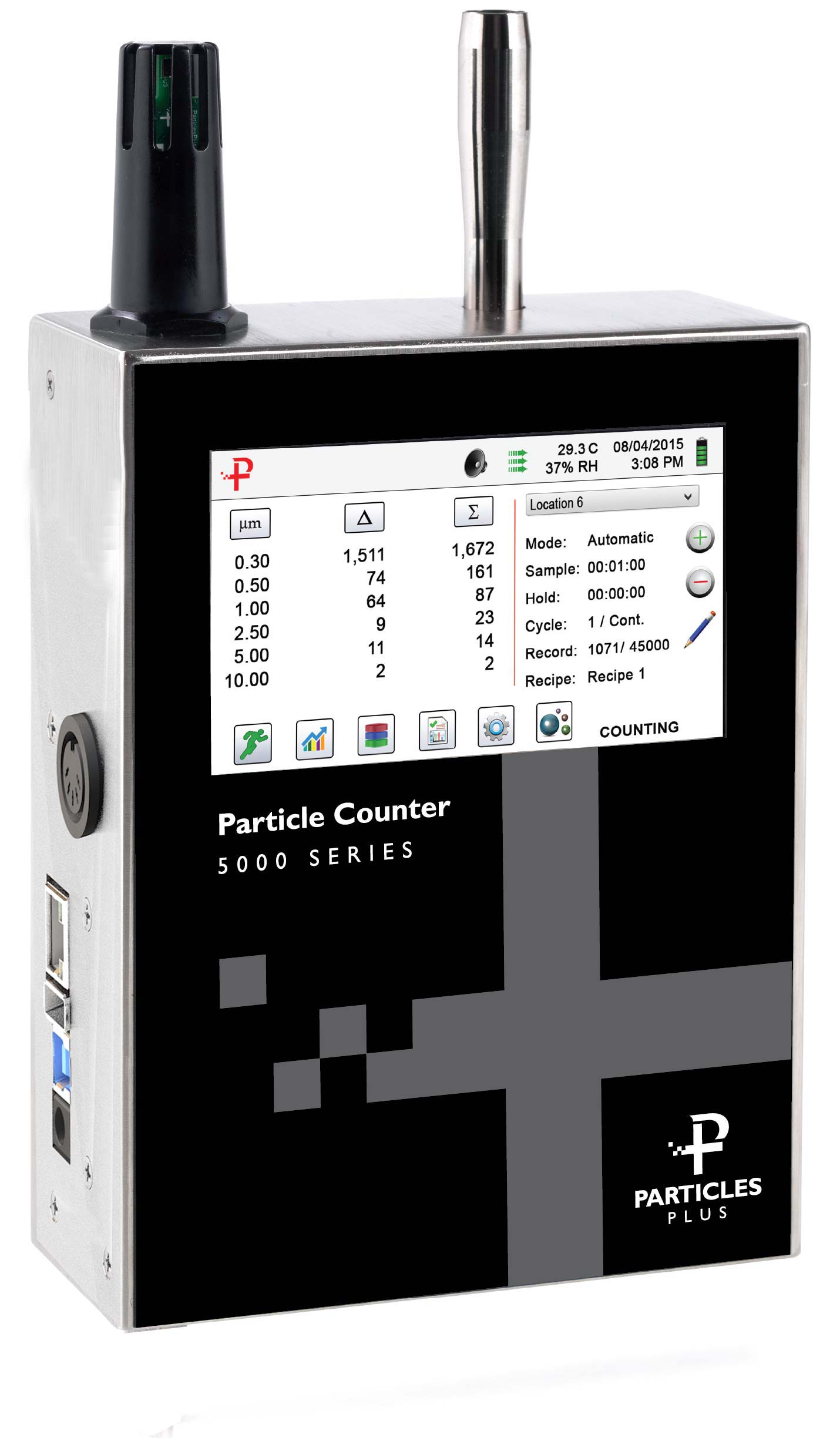

5301P Remote Particle Counter

particles plus 5301P remote particle counter

Model 5301P

0.3 – 25 µm @ 0.1 CFM with internal pump

The Particles Plus® 5301P Remote Particle Counter is the most feature-advanced remote particle counter available. Integration is easy into a building automation and cleanroom management system via Ethernet, or (optional) Wireless 802.11 b/g, RS485 or RS232.

The 5301P remote particle counters display and report 6 user-selectable particle size channels, as well as temperature and relative humidity, flow and sensor status, date of last calibration, serial number, laser on-time and date of manufacture for easy maintenance and warranty management.

This remote particle counter stores up to 45,000 time stamped particle count and environmental data records which provides data redundancy on every instrument. Particles Plus® counters can be controlled and monitored remotely via web browser.

All Particles Plus® counters meet ISO 21501-4 and JIS B9921. The 5301P ensures compliance with an on-board pulse height analyzer.

Measures 0.3 μm to 25 μm
0.1 CFM (2.83 LPM) flow rate
Long-life laser diode technology
Measures up to 6 channels of simultaneous data
Approximates mass concentration in μg/m³
Large easy-to-use icon driven color touch screen display
(Optional) temperature and relative humidity probe
Internal vacuum pump
Stores up to 45,000 sample records for on-board data redundancy
Easy configuration and transferable from instrument to instrument
Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232.
Static or dynamic IP address (DHCP)
Internal audible alarm
User-selectable channel sizes
Complies with ISO 21501-4 and JIS B9921 standards
Easy to clean and wipe down with minimal particle traps
Versatile mounting options
Seamless integration into a facility monitoring system
Light weight stainless steel enclosure

2 year limited warranty. Extended warranties available.

Size Range 0.3 to 25 μm
Size Channels Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Flow rates 0.1 CFM (2.83 LPM)
Concentration Limit 15,000,000 Particles/ft³ @ 10% coincidence loss
Counting Efficiency 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
Light Source Long Life Laser Diode
Zero Count <1 count / 60 minutes (<1 particles / 6 ft³). No fault count subtraction.
Count Modes Automatic, manual, real-time meter, cumulative/differential, count or concentration
Count Alarms 1 to 9,999,999 counts
Calibration NIST traceable
Display 4.3″ (10.9 cm) WQVGA (480×272) color touch screen
Internal Vacuum Pump Internal pump with automatic flow control
Number of Channels 6
Custom Size Channels Calibration for custom size channels available
Airflow Internally monitored
Audible Alarm Adjustable built-in alarm
Communication Modes Ethernet and USB
Optional Communication Modes Wireless 802.11 b/g, RS485 or RS232
Environmental Sensor Optional temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% relative humidity
Alarm Alarms on counts for all particle sizes, sensor failure, environmental sensors and flow
Standards ISO 21501-4 and JIS B9921
Calibration Recommended minimum once per year
External Surface Stainless steel
Dimensions (L x W x H) 5.2” x 2.3” x 8.9” (13.3 cm x 5.8 cm x 22.6 cm) includes barb fittings
Weight 2.6 lb (1.18 kg)
Accessories Operating manual on USB flash drive, isokinetic probe, power supply & cable
Optional Accessories Printed manual, temperature relative humidity sensor, isokinetic probes, filter, data cable, mounting bracket and sample tubing
Buffer Memory 45,000 sample records (rotating buffer) including particle count data and environmental data
Sample Time 1 second to 99 hours
Power 110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Storage Conditions 32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
Warranty

2 year limited warranty. Extended warranties available.

5301P 5501P

AS 99002 Filter 0.1 CFM 2.83 LPM
EE 80014A Temperature Humidity Probe
AS 99001 Remote Mounting Bracket
EE 80093 Wireless 802.11 b g Output with Antenna

Filter
0.1 CFM (2.83 LPM)
Part Number: AS-99002


Temperature and Humidity Probe
Part Number: EE-80014A


Remote Mounting Bracket Part Number: AS-99001


Wireless 802.11 b/g with Output Antenna
Part Number: EE-80092

PS 12041 Isoprobe Threaded 0.1 CFM 2.83 LPM Ni Plated Al
PS 12070 Isoprobe Threaded 0.1 CFM 2.83 LPM Stainless
PS 12022 Isoprobe Barbed 0.1 CFM 2.83 LPM Stainless
PS 12005 0.125 inch Inlet fitting

Isoprobe Threaded (Ni Plated Al)
0.1 CFM (2.83 LPM)
Part Number: PS-12041


Isoprobe Threaded (Stainless)
0.1 CFM (2.03 LPM)
Part Number: PS-12070


Isoprobe Barbed (Stainless)
0.1 CFM (2.83 LPM)
Part Number: PS-12022


Inlet Fitting Barbed
1/8 (Stainless)
Part Number: PS-12005

AS 99019 Sample Tubing .375 OD x .250 ID
AS 99019 Sample Tubing .375 OD x .250 ID
AS 99037 Tubing .375 OD .250 ID Bev A Line XX per foot
AS 99037 Tubing .375 OD .250 ID Bev A Line XX per foot

Tubing (per foot)
3/8" OD (1/4" ID)
Part Number: AS-99019


Tubing (per foot)
1/4" OD (1/8" ID)
Part Number: AS-99018


Tubing (per foot)
3/8" OD (1/4" ID) Bev-A-Line XX
Part Number: AS-99037


Tubing (per foot)
1/4" OD (1/8" ID) Bev-A-Line XX
Part Number: AS-99036

AS 99022 USB Cable 6ft 1.8m
EE 80081 Power Supply 12V 2A 100 240 VAC
EE 80130 Power Connector UK MY SG
EE 80131 Power Connector Australia China

USB Cable
6ft (1.8m)
Part Number: AS-99022


Power Supply
15V ~2A 100-240 VAC
Part Number: EE-80127


Power Supply Connector
UK, Malaysia & Singapore
Part Number. EE-80130


Power Supply Connector
China & Australia
Part Number: EE-80131

EE 80129 Power Connector EU Korea
EE 80128 Power Connector USA Japan
PP Manual 1
PP Manual 1

Power Supply Connector
Europe & Korea
Part Number: EE-80129


Power Supply Connector
USA, Japan, Philippines, Taiwan
Part Number: EE-80128


5000 Series
User Manual (Printed)
Part Number: MN-24004P


5000 Series
Validation Manual
Part Number: MN-24006

MN 2400X Instrument Management Software User Manual

IMS Software & User Manual (USB Key)
Part Number: MN-24004
