Instrument Management Software
Remote Operation, Data Collection, and Real-Time Graphing

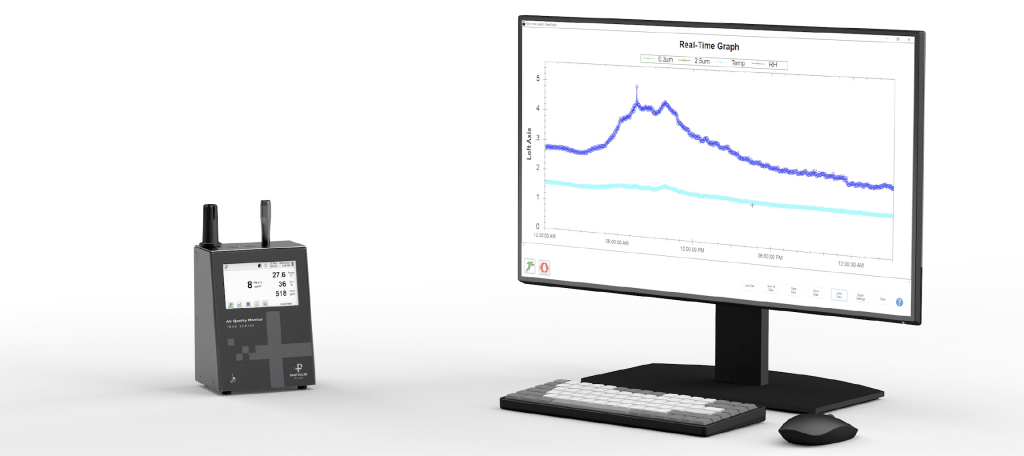

Particles Plus® Instrument Management Software (IMS) software is provided free of charge and it includes remote operation, data collection, and real-time graphing while controlling Particles Plus particle counters.
The software is used to manage and monitor particle counting instruments, providing accurate and reliable data for cleanroom and indoor air quality applications.
The software interface is intuitive and easy to navigate, providing a full dashboard. The IMS offers users the ability to update the firmware, download air quality data, or ever calibrate the environmental sensors present in each instrument.
| • Intuitive user interface |
| • Real-time measurements |
| • Log data |
| • Calibration of the environmental sensors |
| • Firmware update |
| • Remote diagnostics |
| • Plot graphs for Date/Number Range, Last Number, or All Records |
| • Communication over USB, RS-232, RS-485, or Wired/Wi-Fi TCP/IP |
| • Operating system MS WindowsTM PC (7, 8.1, 10, and 11) |

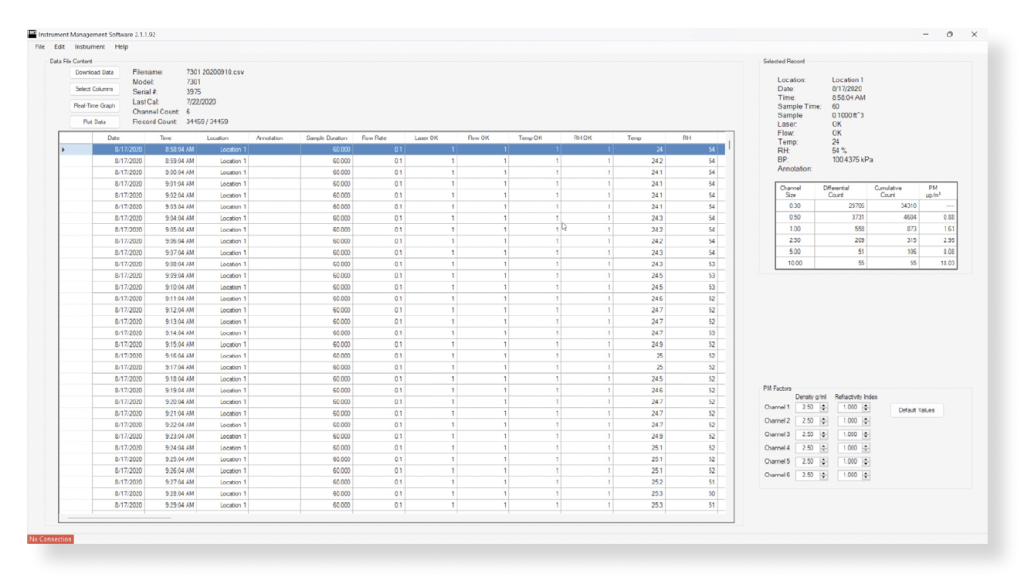

Main Screen
The Instrument Management Software allows users to view past and real-time measurements. The software will display the status of the instrument. You can download the measurements from the instrument to your computer into a .CSV file for archive or further analysis.

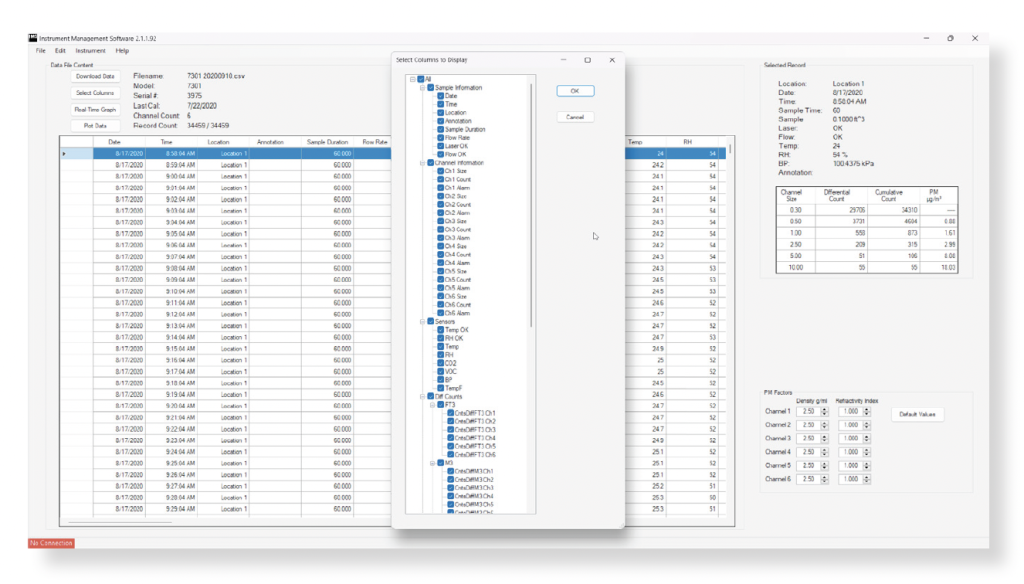

Instrument & Data Managment
The software allows users to select the data that are relevant to their needs and directly export the data to MS Excel. Additionally, it offers the ability to update the instrument firmware with new features and calibrate environmental sensor such as temperature and relative humidity.

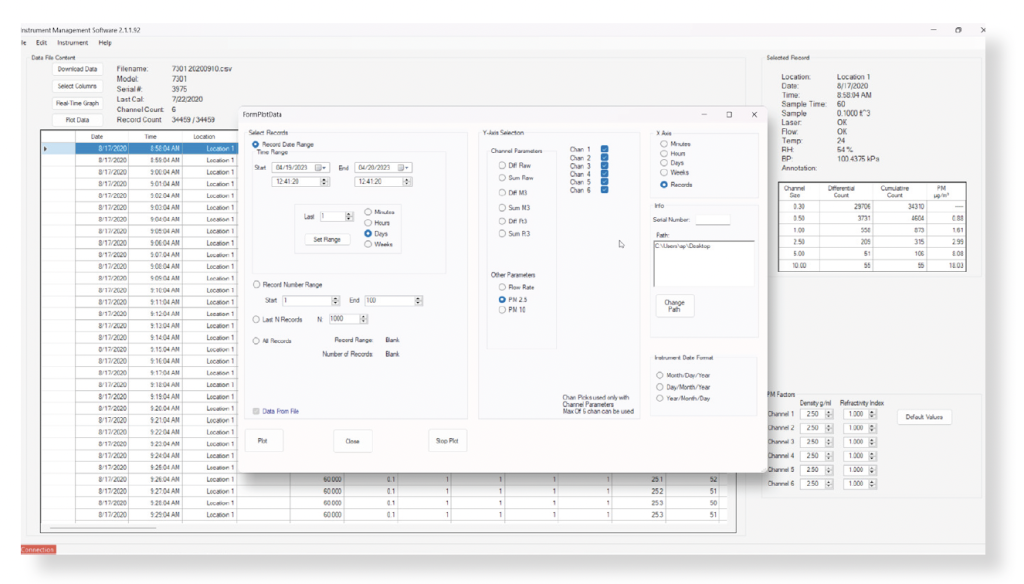

Data Plotting
Users can select data fields and a data range for the selected instrument and retrieve that data and plot it for immediate analysis. This provides a quick and simple means of viewing instrument data.
IMS Compatible Particles Plus Instruments
Model 8306
0.3 – 25 µm @ 0.1 CFM
Model 8506
0.5 – 25 μm @ 0.1 CFM
Model 8303
0.3 – 25 μm @ 0.1 CFM
Model 8503
0.5 – 25 μm @ 0.1 CFM
Model 8300
0.3 – 25 µm @ 1.2 LPM
Model 8506-30
0.5 – 75 μm @ 0.1 CFM
Model 8301-AQM
0.3 – 25 μm @ 0.1 CFM
Model 7301
0.3 – 25 µm @ 0.1 CFM
Model 7501
0.5 – 25 μm @ 0.1 CFM
Model 7300
0.3 – 25 μm @ 1.2 LPM
Model 7501-30
0.5 – 75 μm @ 0.1 CFM
Model 7301-AQM
0.3 – 25 µm @ 0.1 CFM
Model 5301P
0.3 – 25 µm @ 0.1 CFM
Model 5301
0.3 – 25 μm @ 0.1 CFM
Model 5501P
0.5 – 25 μm @ 0.1 CFM
Model 5501
0.5 – 25 μm @ 0.1 CFM
Model 5300P
0.3 – 25 µm @ 1.2 LPM
Model 5501-30
0.5 – 75 μm @ 0.1 CFM
Model 5301-AQM
0.3 – 25 μm @ 0.1 CFM
