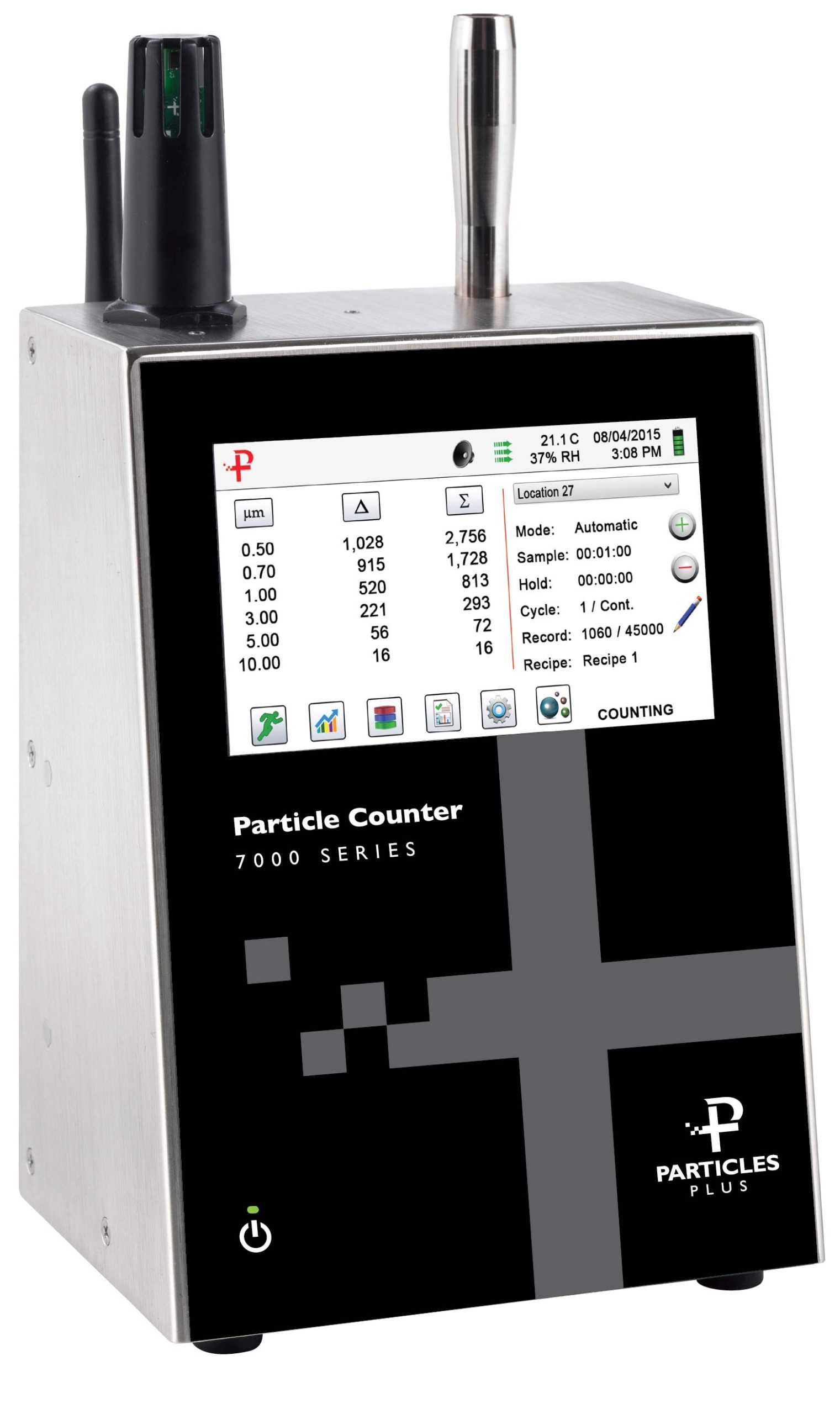

7501 Benchtop Airborne Particle Counter
Model 7501
0.5 – 25 µm @ 0.1 CFM with long-life internal pump & battery
The Particles Plus® 7501 Remote Particle Counters measure particles from 0.5 to 25.0 μm at a flow rate of 0.1 CFM (2.83 LPM). These user-friendly instruments display up to six selectable particle size channels, along with temperature and relative humidity measurements.
Designed for cleanroom monitoring, indoor air quality, industrial hygiene, research, and health & safety applications, the 7000 Series offers exceptional versatility. From the cleanest labs to the dirtiest worksites, confidently monitor any environment thanks to the industry’s highest particle concentration limits.
With 10 hours of continuous battery operation and up to 100 hours using our patented intelligent battery management system, these instruments are built for long-lasting performance on a single charge. The Particles Plus® Real-Time Monitoring technology enables dynamic particle investigations, displaying data in particles per second to help users quickly locate contamination sources in controlled environments.
Data can be managed directly on the device or through the free Particles Plus® software. Export raw data in .CSV format or generate compliant reports (ISO 14644-1, EU GMP Annex 1, or FS 209E). Remote diagnostics are also available from anywhere with an internet connection. The 7000 Series can function as a fully portable, battery-operated solution or be easily integrated into building automation and cleanroom management systems with multiple communication options.
| • Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes |
| • Long life laser diode technology for reliable performance |
| • Approximates mass concentration in μg/m³ with density and refractive index corrections |
| • User selectable PM sizes from 0.3 or 0.5 μm to 10 μm including TPM of up to 25.0 μm |
| • Large, intuitive color touch screen display with an easy-to-use icon-driven interface |
| • Temperature and relative humidity probe included |
| • Resolve issues quickly from any location with internet-enabled remote diagnostics |
| • Annotation function allows user to save 32 character notations to a live sample record |
| • Over 10 hours continuous sampling on a single charge |
| • Integrated handle for one-handed operation |
| • Common interface ensures ease of use across all products |
| • Connect using Ethernet, USB, Wi-Fi (optional), RS 485 or RS232 |
| • Displays user-definable reports for ISO 14644-1, EU GMP Annex 1 and FS 209E |
| • Built-in visual and audible alarms with comprehensive alarm management |
| • Complies with ISO 21501-4 and JIS B9921 standards |
| • Equipped with a standard 1/4”–20 female mount for tripod mounting |
| • Easy to clean, lightweight stainless steel enclosure with minimal particle traps |
| • 2 year Limited Warranty (Extended and Lifetime warranties available) |
| Model | 7501 |
| Size Range | 0.5 to 25.0 μm |
| Size Channels | Factory calibrated at 0.5, 0.7, 1.0, 2.5, 5.0, 10.0 μm variable binning |
| Counting Efficiency | 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS |
| Flow rate | 0.1 CFM (2.83 LPM) |
| Concentration Limits | 15,000,000 particles/ft3 @ 10% coincidence (per ISO 21501-4), |
| 30,000,000 particles/ft3 @ 10% coincidence (as tested and validated1) | |
| Battery Run Time | >10 hours continuous operation |
| Light Source | Long life laser diode |
| Zero Count | <1 count / 60 minutes (<1 particles / 6 ft3). No fault count subtraction. No appreciable drift. |
| Count Modes | Particles/second, Real-Time Meter, cumulative/differential (count/m³ and count/ft³) and mass concentration (PM) |
| Count Alarms | 1 to 9,999,999 counts |
| Calibration | NIST traceable |
| Display | 4.3″ (10.9 cm) WQVGA (480×272) color touch screen |
| Optional Printer | External thermal printer available |
| Vacuum Source | Internal pump with automatic flow control |
| Filtered Exhaust | Internal HEPA filter |
| Number of Channels | 6 |
| Custom Size Channels | Calibration for custom size channels available |
| Audible Alarm | Adjustable integrated alarm |
| Battery | Removable Li-ion (Recharge time: 4 hours or <2 hours with external battery charger) |
| Exportable Data Reports | ISO 14644-1, EU GMP Annex 1, FS 209E |
| Recipes | 50 user-configurable recipes |
| Communication Modes | Ethernet, USB, Wireless 802.11 b/g (Optional), RS485 or RS232 |
| Environmental Sensor | Includes temperature (32-122°F, ±1°F / 0-50°C, ±0.5°C) and relative humidity probe (15–90% RH, ±2%) |
| Alarm | Integrated alarms for particle counts (any size channel), sensor failure, environmental sensors, and flow rate |
| Standards | ISO 21501-4 and JIS B9921 |
| Calibration | Recommended minimum once per year |
| External Surface | Stainless steel |
| Dimensions (L x W x H) | 5.22 x 3.81 x 9.42 in (14.0 x 9.7 x 23.9 cm) includes barb fittings |
| Weight | 4 lb (1.8 kg) |
| Accessories | User manual + Instrument Management Software (IMS) on USB flash drive, isokinetic probe, temperature relative humidity sensor, zero-count filter, battery, USB cable, and power supply |
| Optional Accessories | Printed manual, spare battery, external battery charger, external printer and isokinetic probes |
| Buffer Memory | Securely stores up to 45,000 records with particle counts, environmental data, locations, and timestamps |
| Sample Locations | Up to 1,000 locations 20 characters long |
| Sample Time | 1 second to 99 hours |
| Power | 110 to 240 VAC 50/60 Hz universal in-line power supply |
| Operating Conditions | 41-104ºF (5-40ºC) / 20% to 95% non-condensing |
| Storage Conditions | 32-122ºF (0-50ºC) / Up to 98% non-condensing |
| Warranty | 2 Year Limited Warranty (Extended and Lifetime Warranties available) |
1- Validated by independent analysis see paper available at www.particlesplus.com/aac2022_paper
 |  |  |  |
7000 Series Carrying Case Part Number: AS-99015 | Wireless 802.11 b/g with Output Antenna Part Number: EE-80092 | Battery 55Wh Rechargeable & Removable Part Number: EE-80003A | External 55h Battery Charger (For EE-80003A) Part Number: AS-99005A |
 |  |  |  |
Temperature and Humidity Probe Part Number: EE-80014A | Filter 0.1 CFM (2.83 LPM) Part Number: AS-99002 | Filter Assembly 0.1 CFM (2.83 LPM) Part Number: AS-99002A | RS-485/232 Connector (5 POS) Part Number: EE-79015A |
 |  |  |  |
Isoprobe Threaded (Ni Plated Al) 0.1 CFM (2.83 LPM) Part Number: PS-12041 | Isoprobe Threaded (Stainless) 0.1 CFM (2.03 LPM) Part Number: PS-12070 | Isoprobe Barbed (Stainless) 0.1 CFM (2.83 LPM) Part Number: PS-12022 | Inlet Fitting Barbed 1/8 (Stainless) Part Number: PS-12005 |
 |  |  |  |
External Thermal Printer Includes 2 Rolls of Paper Part Number: AS-99011 | Thermal Printer Paper Single Roll Part Number: AS-99012 | USB Cable 6ft (1.8m) Part Number: AS-99022 | Power Supply 15V ~2A 100-240 VAC Part Number: EE-80127 |
 |  |  |  |
Power Supply Connector USA, Japan, Philippines, Taiwan Part Number: EE-80128 | Power Supply Connector Europe & Korea Part Number: EE-80129 | Power Supply Connector UK, Malaysia & Singapore Part Number. EE-80130 | Power Supply Connector China & Australia Part Number: EE-80131 |
 |  |  |  |
Tubing (per foot) 3/8" OD (1/4" ID) Part Number: AS-99019 | Tubing (per foot) 3/8" OD (1/4" ID) Bev-A-Line XX Part Number: AS-99037 | IMS Software & User Manual (USB Key) Part Number: MN-24003 | 7000 Series Validation Manual Part Number: MN-MN-24005 |
| |||
7000 Series User Manual (Printed) Part Number: MN-24003P |
