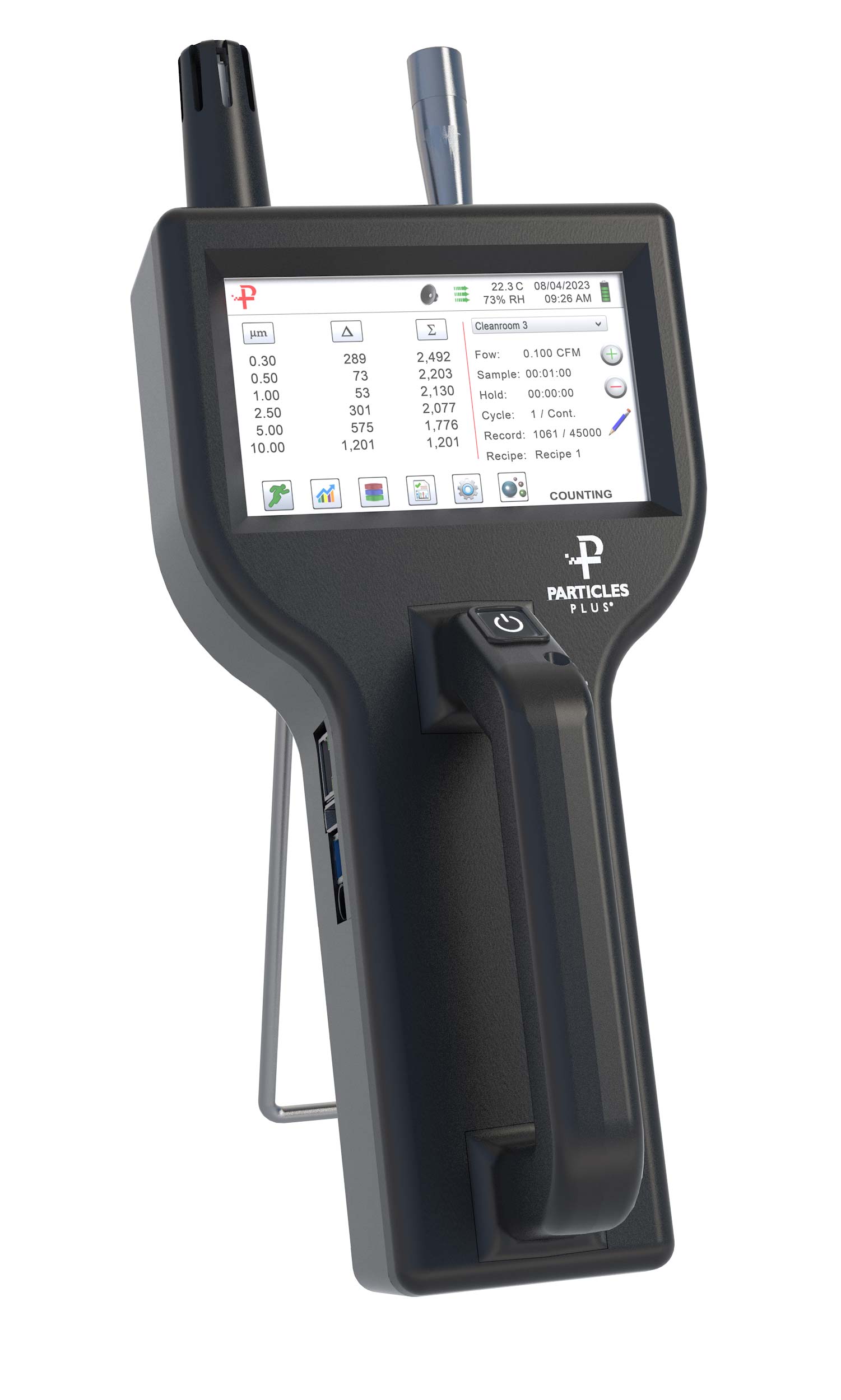

8306 Handheld Particle Counter

particles plus 8306 handheld particle counter

Model 8306

0.3 – 25 µm @ 0.1 CFM

The Particles Plus® 8306 Handheld Particle Counter measures 0.3 to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).

Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via printer, USB key, real time through its versatile output options or export to Particles Plus® data-download software. Particles Plus® counters can be controlled and monitored remotely via web browser. The 8306 has a mass concentration mode that approximates density in μg/m³.

All Particles Plus® counters meet ISO 21501-4 and JIS B9921. The 8306 ensures compliance with an on-board pulse height analyzer.

Measures 0.3 μm to 25.0 μm
0.1 CFM (2.83 LPM) flow rate
Long life laser diode technology
Measures up to 6 channels of simultaneous data
Approximates mass concentration in μg/m³ with density and refractive index corrections
Integrated handle for one-handed operation
Large easy-to-use icon driven color touch screen display
Temperature and relative humidity probe included
Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
Annotation function allows user to save 32 character notations to a sample record
Remote diagnostics allows for remote service investigation through the Internet
Easy configuration and transferable from instrument to instrument
Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS 485 or RS232
Displays user-definable reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
Internal audible alarm with comprehensive alarm management
User-selectable channel sizes
Complies with ISO 21501-4 and JIS B9921 standards
Easy to clean and wipe down with minimal particle traps
Seamless integration into a facility monitoring system
Lightweight high-impact injection molded plastic enclosure
2 year limited warranty. Extended warranties available.
Model8306
Size Range0.3 to 25 μm
Size ChannelsFactory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm variable binning
Flow rate0.1 CFM (2.83 LPM)
Concentration Limit15,000,000 Particles/ft³ @ 10% coincidence loss
Battery Run Time>10 hours continuous operation
Light SourceLong life laser diode
Counting Efficiency50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
Zero Count<1 count / 60 minutes (<1 particles / 6 ft³). No fault count subtraction.
Count ModesReal-Time Meter and graph, cumulative/differential count/m³and count/ft³, and mass concentration (PM)
Count Alarms1 to 9,999,999 counts
CalibrationNIST traceable
Display4.3" (10.9 cm) WQVGA (480x272) color touch screen
Printer(Optional) External thermal printer
Vacuum SourceInternal pump with automatic flow control
Filtered ExhaustInternal HEPA filter
Number of Channels6
Custom Size Channels6 Calibration for custom size channels available
Audible AlarmAdjustable built-in alarm
BatteryRemovable Li-ion
Battery Recharge Time4 hours within instrument (<2 hours with external battery charger)
ReportsISO 14644-1, EU GMP Annex 1, FS 209E
Recipes50 user-configurable recipes
Communication ModesEthernet and USB. (Optional) Wireless 802.11 b/g, RS485 or RS232.
Environmental SensorTemp and RH probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC),15-90% ±2% relative humidity
AlarmAlarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow
StandardsISO 21501-4 and JIS B9921
Instrument CalibrationRecommended minimum once per year
External SurfaceHigh impact injection molded plastic
Dimensions (L x W x H)5.12” x 4.25” x 12.26” (13.0 cm x 10.8 cm x 31.1 cm) includes handle and does not include probes
Weight2.2 lb (1.0 kg)
AccessoriesOperating manual and IMS software on USB flash drive, isokinetic probe, temperature relative humidity sensor, filter, battery, data download software, USB cable, power supply and cable
Optional AccessoriesPrinted manual, carrying case, spare battery, external battery charger, external printer and isokinetic probes, barbed fittings, IMS-RT monitoring system
Buffer Memory45,000 sample records (rotating buffer) including particle count data, environmental data, locations, annotations, and times. Scrollable on screen or printout.
Sample LocationsUp to 1,000 locations 20 characters long
Sample Time1 second to 99 hours
Power110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Storage Conditions32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
Warranty2 year limited warranty. Extended warranties available.

8306

AS 99015 Handheld Carrying Case
EE 80093 Wireless 802.11 b g Output with Antenna
EE 80003A Battery 55Wh
AS 99005A External 55Wh Battery Charger

Carrying Case
Part Number: AS-99015

Wireless 802.11 b/g with Output Antenna
Part Number: EE-80092

Battery 55Wh
Rechargeable & Removable
Part Number: EE-80003A

External 55h Battery Charger
(For EE-80003A)
Part Number: AS-99005A

EE 80014A Temperature Humidity Probe
AS 99002 Filter 0.1 CFM 2.83 LPM
AS 99002A Filter Assembly 0.1 CFM 2.83LPM
20170920 124604 1

Temperature and Humidity Probe
Part Number: EE-80014A

Filter
0.1 CFM (2.83 LPM)
Part Number: AS-99002

Filter Assembly
0.1 CFM (2.83 LPM)
Part Number: AS-99002A

RS-485/232
Connector (5 POS)
Part Number: EE-79015A

PS 12041 Isoprobe Threaded 0.1 CFM 2.83 LPM Ni Plated Al
PS 12070 Isoprobe Threaded 0.1 CFM 2.83 LPM Stainless
PS 12022 Isoprobe Barbed 0.1 CFM 2.83 LPM Stainless
PS 12005 0.125 inch Inlet fitting

Isoprobe Threaded (Ni Plated Al)
0.1 CFM (2.83 LPM)
Part Number: PS-12041

Isoprobe Threaded (Stainless)
0.1 CFM (2.03 LPM)
Part Number: PS-12070

Isoprobe Barbed (Stainless)
0.1 CFM (2.83 LPM)
Part Number: PS-12022

Inlet Fitting Barbed
1/8 (Stainless)
Part Number: PS-12005

AS 99011 External Thermal Printer 2 Rolls Paper
AS 99012 External Thermal Printer Paper
AS 99022 USB Cable 6ft 1.8m
2A Power Supply

External Thermal Printer
Includes 2 Rolls of Paper
Part Number: AS-99011

Thermal Printer Paper
Single Roll
Part Number: AS-99012

USB Cable
6ft (1.8m)
Part Number: AS-99022

Power Supply
15V ~2A 100-240 VAC
Part Number: EE-80127

EE 80128 Power Connector USA Japan
EE 80129 Power Connector EU Korea
EE 80130 Power Connector UK MY SG
EE 80131 Power Connector Australia China

Power Supply Connector
USA, Japan, Philippines, Taiwan
Part Number: EE-80128

Power Supply Connector
Europe & Korea
Part Number: EE-80129

Power Supply Connector
UK, Malaysia & Singapore
Part Number. EE-80130

Power Supply Connector
China & Australia
Part Number: EE-80131

AS 99019 Sample Tubing .375 OD x .250 ID
AS 99037 Tubing .375 OD .250 ID Bev A Line XX per foot
MN 2400X Instrument Management Software User Manual
document print

Tubing (per foot)
3/8" OD (1/4" ID)
Part Number: AS-99019

Tubing (per foot)
3/8" OD (1/4" ID) Bev-A-Line XX
Part Number: AS-99037

IMS Software & User Manual (USB Key)
Part Number: MN-24001

8000 Series
Validation Manual
Part Number: MN-24002

document print

8000 Series
User Manual (Printed)
Part Number: MN-24001P
