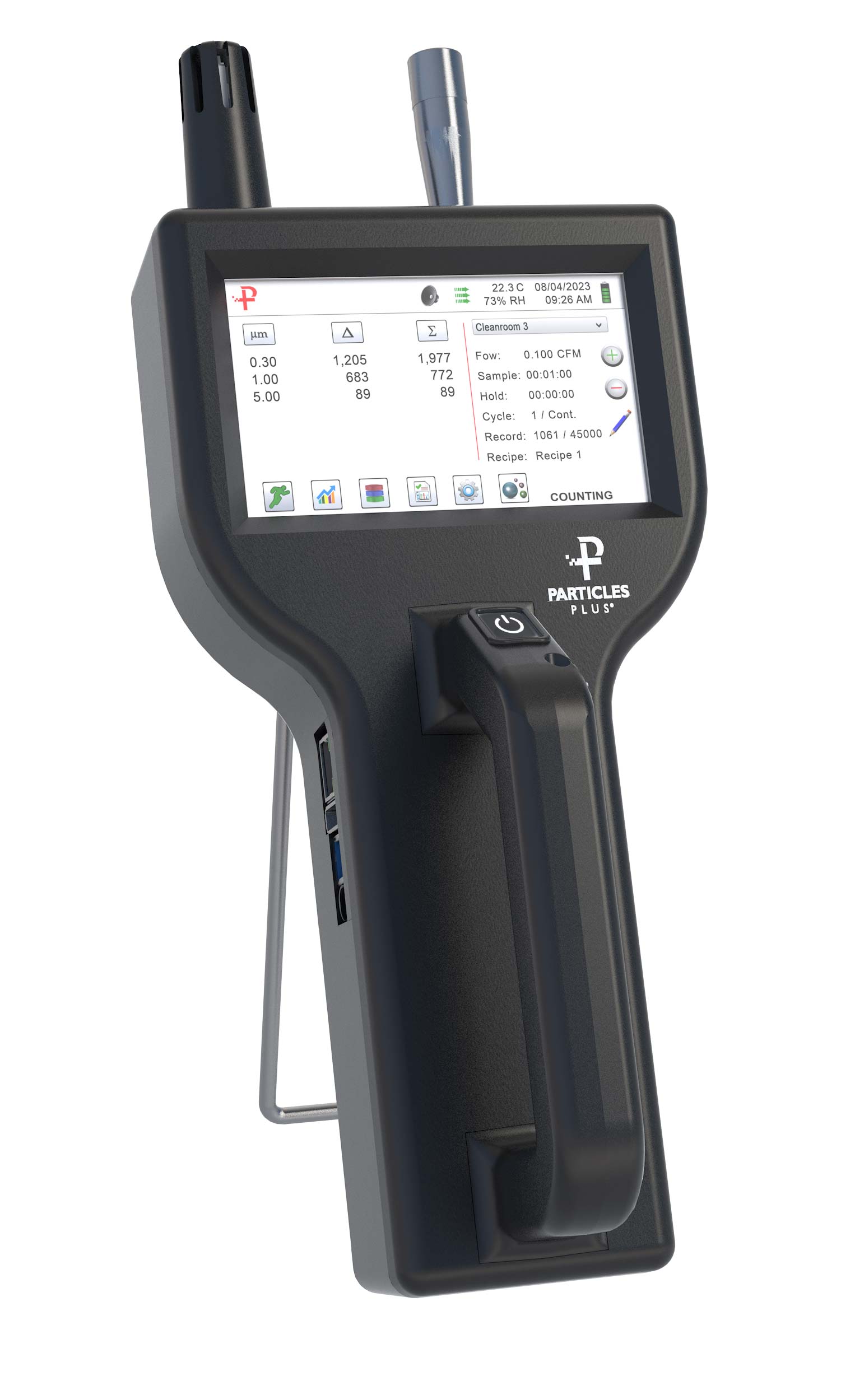

8503 Handheld Particle Counter

Model 8503

0.5 – 25 µm @ 0.1 CFM

The Particles Plus® 8503 Handheld Particle Counter is designed for cleanroom monitoring, indoor air quality, industrial hygiene, research, and health & safety applications. Its patented, feature-rich design enables dynamic environmental monitoring and versatile data reporting across multiple industries.

The 8503 measures particles from 0.5 to 25 μm in three user-selectable channels at a flow rate of 0.1 CFM (2.83 LPM). It offers data reporting in standard cleanroom formats or by mass concentration in μg/m³, with optional density and refractive index corrections. Included temperature and relative humidity probes, along with optional CO2 and TVOC sensors, provide comprehensive environmental monitoring.

With unique features like Particles/Second and the Real-Time Meter, the 8503 enables efficient, on-the-go particle investigations across nearly any environment. The instrument can also operate as a remote particle counter, leveraging its intelligent battery and power conservation modes to achieve up to 100 hours of battery life.

The Particles Plus® standardized hardware and firmware simplify maintenance and reduce the total cost of ownership. Combined with extensive remote diagnostics and a lifetime warranty, the 8503 ensures industry-leading performance and long-term value.

• Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
• Approximates mass concentration in μg/m³ with density and refractive index corrections
• Large, intuitive color touch screen display with an easy-to-use icon-driven interface
• Resolve issues quickly from any location with internet-enabled remote diagnostics
• Annotation function allows user to save 32 character notations to a live sample record
• Over 10 hours continuous sampling on a single charge
• Integrated handle for one-handed operation
• Common interface ensures ease of use across all products
• Connect using Ethernet, USB, Wi-Fi (optional), RS 485 or RS232
• Displays user-definable reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
•  Built-in visual and audible alarms with comprehensive alarm management
• Complies with ISO 21501-4 and JIS B9921 standards
• Easy to clean and wipe down with minimal particle traps
• Equipped with a standard 1/4”–20 female mount for tripod compatibility
• Lightweight high-impact injection molded plastic enclosure
• 2 year Limited Warranty (Extended and Lifetime warranties available)
Model83038503
Size Range0.3 to 25 μm0.5 to 25 μm
Size ChannelsFactory calibrated at 0.3, 0.5, 5.0 μmFactory calibrated at 0.5, 1.0, 5.0 μm
Flow rates0.1 CFM (2.83 LPM)
Concentration Limits15,000,000 particles/ft3 @ 10% coincidence (per ISO 21501-4),
30,000,000 particles/ft3 @ 10% coincidence (as tested and validated1)
Battery Run Time>10 hours continuous operation
Light SourceLong life laser diode
Counting Efficiency50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
Zero Count<1 count / 60 minutes (<1 particles / 6 ft3). No fault count subtraction.
Count ModesParticles/second, Real-Time Meter, cumulative/differential, count/m³and count/ft³, and mass concentration (PM)
Count Alarms1 to 9,999,999 counts
CalibrationNIST traceable
Display4.3″ (10.9 cm) WQVGA (480×272) color touch screen
Printer(Optional) External thermal printer available
Vacuum SourceInternal pump with automatic flow control
Filtered ExhaustInternal HEPA filter
Number of Channels3
Custom Size ChannelsCalibration for custom size channels available
Audible AlarmAdjustable built-in alarm
BatteryRemovable Li-ion (Recharge time: 4 hours within instrument, <2 hours with external battery charger)
ReportsISO 14644-1, EU GMP Annex 1, FS 209E
Recipes50 user-configurable recipes
Communication ModesEthernet and USB. (Optional) Wireless 802.11 b/g, RS485 or RS232
Environmental SensorOptional temperature 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC) and relative humidity probe 15-90% ±2%
AlarmIntegrated alarms for particle counts (any size channel), sensor failure, environmental sensors, and flow rate
StandardsISO 21501-4 and JIS B9921
CalibrationRecommended minimum once per year
External SurfaceHigh impact injection molded ABS plastic
Dimensions (L x W x H)5.12 x 4.25 x 12.26 in (13.0 x 10.8 x 31.1 cm) including handle but excluding probes
Weight2.2 lb (1.0 kg)
AccessoriesUser manual + Instrument Management Software (IMS) on USB flash drive, isokinetic probe, temperature relative humidity sensor, zero-count filter, battery, USB cable, and power supply
Optional AccessoriesPrinted manual, carrying case, spare battery, external battery charger, external printer, barbed fittings, and tubing
Buffer MemorySecurely stores up to 45,000 sample records with particle counts, environmental data, locations, and timestamps
Sample LocationsUp to 1,000 locations 20 characters long
Sample Time1 second to 99 hours
Power110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions41-104ºF (5-40ºC) / 20% to 95% non-condensing
Storage Conditions32-122ºF (0-50ºC) / Up to 98% non-condensing
Warranty2 year Limited Warranty (Extended and Lifetime warranties available)

Carrying Case
Part Number: AS-99015

Wireless 802.11 b/g with Output Antenna
Part Number: EE-80092

Battery 55Wh
Rechargeable & Removable
Part Number: EE-80003A

External 55h Battery Charger
(For EE-80003A)
Part Number: AS-99005A

Temperature and Humidity Probe
Part Number: EE-80014A

Filter
0.1 CFM (2.83 LPM)
Part Number: AS-99002

Filter Assembly
0.1 CFM (2.83 LPM)
Part Number: AS-99002A

RS-485/232
Connector (5 POS)
Part Number: EE-79015A

Isoprobe Threaded (Ni Plated Al)
0.1 CFM (2.83 LPM)
Part Number: PS-12041

Isoprobe Threaded (Stainless)
0.1 CFM (2.03 LPM)
Part Number: PS-12070

Isoprobe Barbed (Stainless)
0.1 CFM (2.83 LPM)
Part Number: PS-12022

Inlet Fitting Barbed
1/8 (Stainless)
Part Number: PS-12005

External Thermal Printer
Includes 2 Rolls of Paper
Part Number: AS-99011

Thermal Printer Paper
Single Roll
Part Number: AS-99012

USB Cable
6ft (1.8m)
Part Number: AS-99022

Power Supply
15V ~2A 100-240 VAC
Part Number: EE-80127

Power Supply Connector
USA, Japan, Philippines, Taiwan
Part Number: EE-80128

Power Supply Connector
Europe & Korea
Part Number: EE-80129

Power Supply Connector
UK, Malaysia & Singapore
Part Number. EE-80130

Power Supply Connector
China & Australia
Part Number: EE-80131

Tubing (per foot)
3/8" OD (1/4" ID)
Part Number: AS-99019

Tubing (per foot)
3/8" OD (1/4" ID) Bev-A-Line XX
Part Number: AS-99037

IMS Software & User Manual (USB Key)
Part Number: MN-24001

8000 Series
Validation Manual
Part Number: MN-24002

8000 Series
User Manual (Printed)
Part Number: MN-24001P
