Modbus Dashboard
Dashboard for Particles Plus Instruments

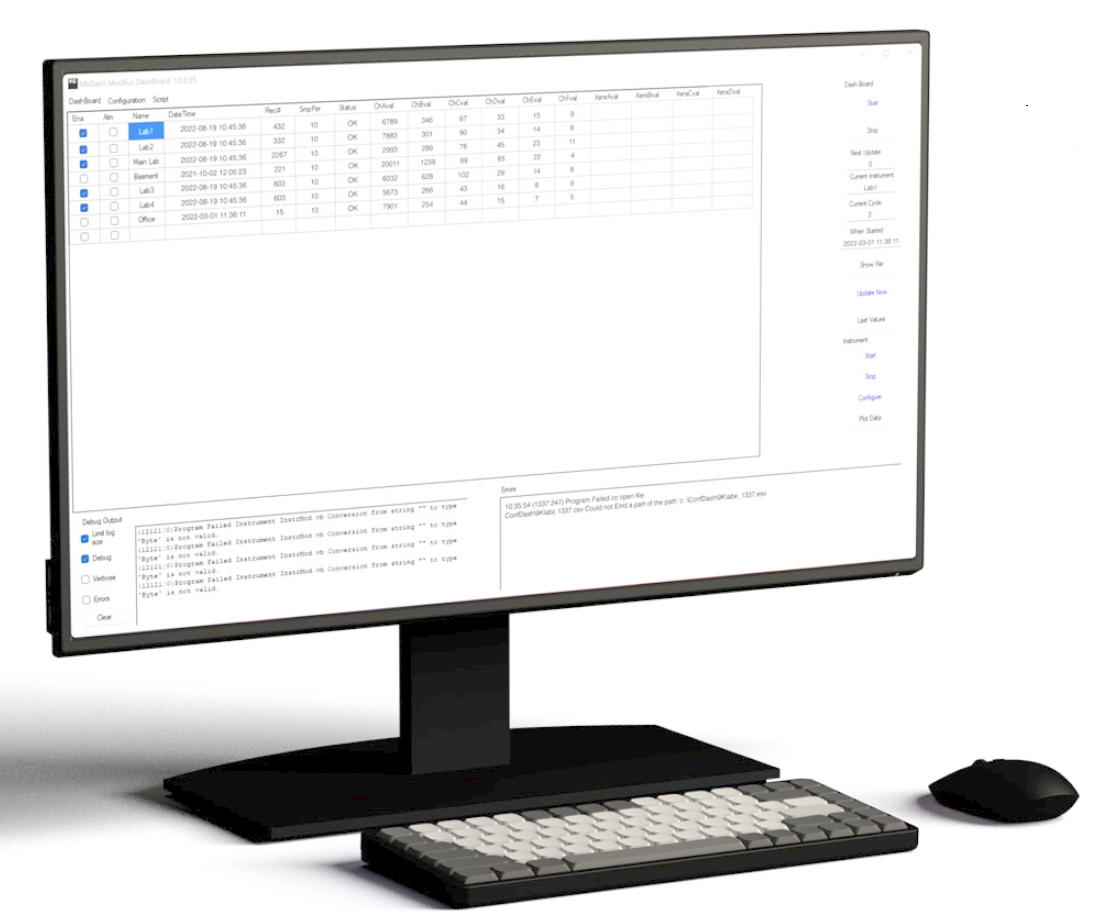

Particles Plus® ModBus DashBoard software is provided free of charge for use with Particles Plus particle counters. It is intended to provide a simple means of monitoring and logging data from one or more of these particle counters via the Modbus protocol.
The ModBus DashBoard uses a tabbed interface design in order to maximize productivity. The tabs are modeled after meticulous research in order to make the end-user experience as optimal as possible, providing an easy to configure and setup interface. Users can monitor and manage up to 35 instruments.
Instruments can be connected using the existing network over TCP/IP, RS-232, or RS-485 interfaces.
• Intuitive user interface |
• Real-time measurements |
• Manage up to 35 instruments |
• Log data from each instrument |
• Plot graphs for Record Date/Number Range, Last Number Recorded, or All Records |
• Define sampling parameters |
• Communication over RS-232, RS-485, or Wired/Wi-Fi TCP/IP |
• Operating system MS WindowsTM PC (7, 8.1, 10, and 11) |

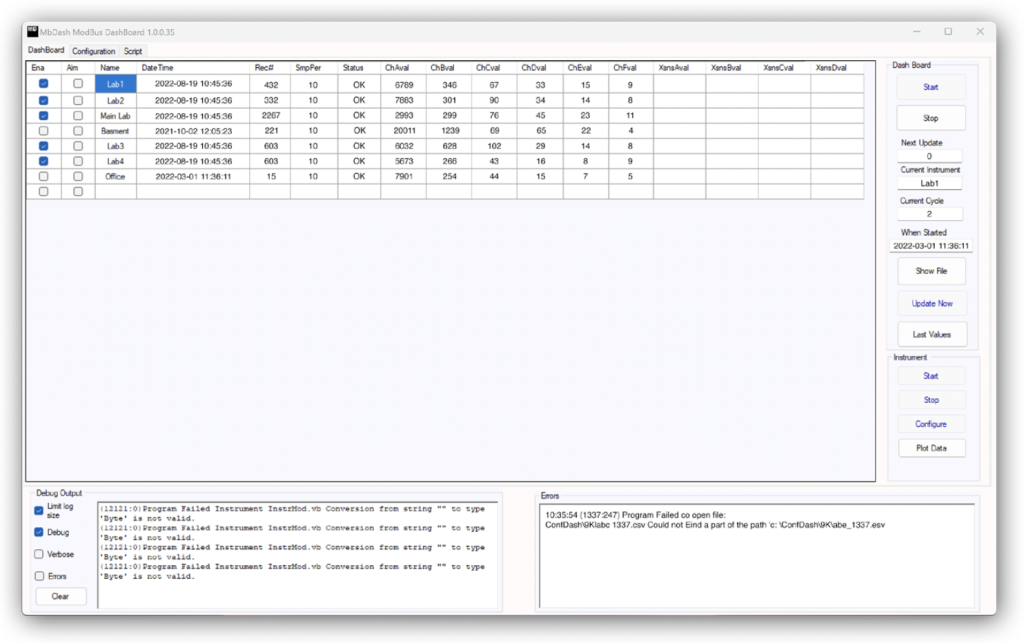

Dashboard
The ModBus DashBoard allows users to monitor simultaneously up to 35 instruments. The software will display the status and selected data for each instrument. It can also log data from each instrument to a .csv file for archive or analysis.

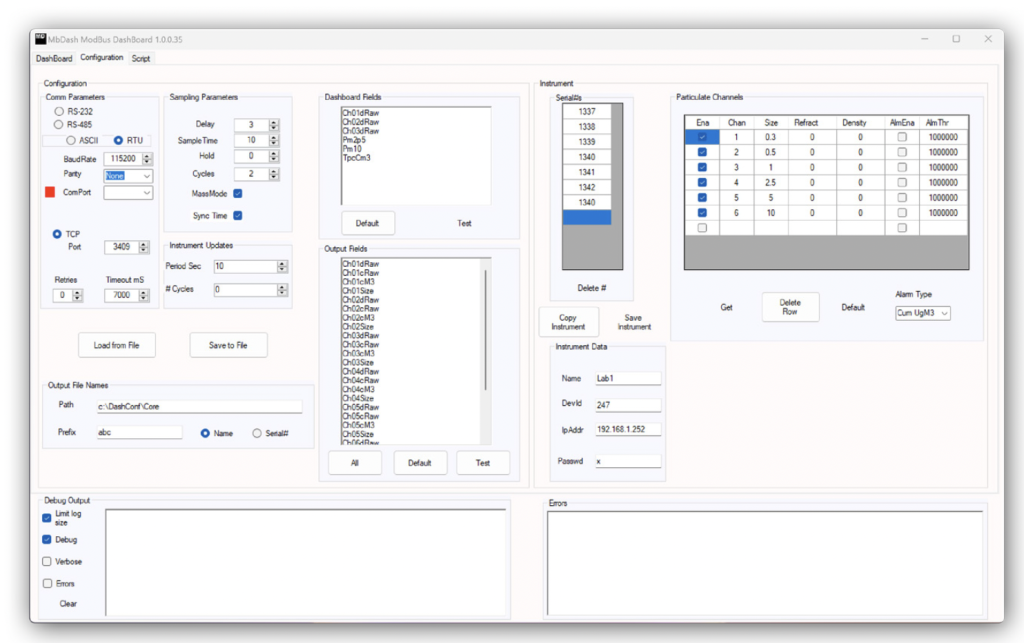

Configuration
The software supports ModBus communication over RS-232, RS-485 or TCP (Wired or Wi-Fi), though at present all instruments connected to this software have to share the same connection method. Likewise both Modbus RTU and ASCII modes are supported, though all instruments have to share the same communication mode as well.

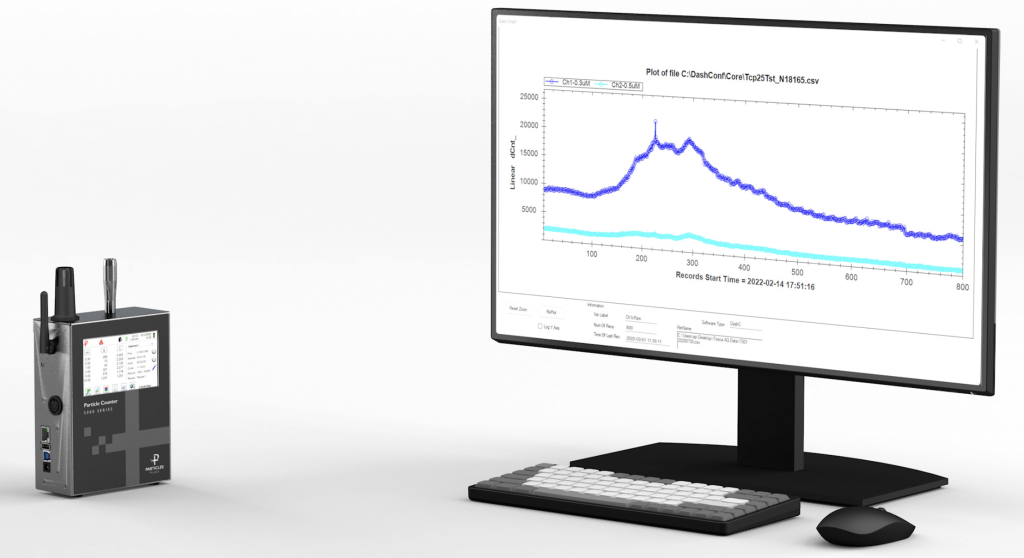

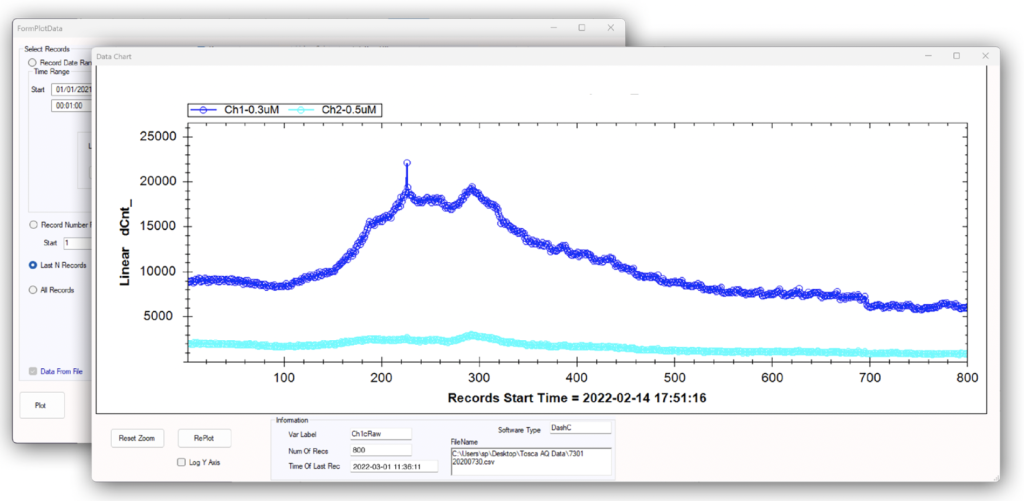

Data Ploting
Users can select data fields and a data range for the selected instrument and retrieve that data and plot it for immediate analysis. This provides a quick and simple means of viewing instrument data.
Modbus Dashboard Compatible Particles Plus Instruments
![particles-plus-2000-series-remote-particle-counter particles plus 2000 series remote particle counter](https://particlesplus.com/wp-content/uploads/2022/04/particles-plus-2000-series-remote-particle-counter.jpg)
Model 2301
0.3 – 25 µm @ 0.1 CFM
![particles-plus-2000-series-remote-particle-counter particles plus 2000 series remote particle counter](https://particlesplus.com/wp-content/uploads/2022/04/particles-plus-2000-series-remote-particle-counter.jpg)
Model 2501
0.5 – 25 μm @ 0.1 CFM
![particles-plus-2000P-series-remote-particle-counter particles plus 2000P series remote particle counter](https://particlesplus.com/wp-content/uploads/2022/04/particles-plus-2000P-series-remote-particle-counter.jpg)
Model 2301P
0.3 – 25 μm @ 0.1 CFM
![particles-plus-2000P-series-remote-particle-counter particles plus 2000P series remote particle counter](https://particlesplus.com/wp-content/uploads/2022/04/particles-plus-2000P-series-remote-particle-counter.jpg)
Model 2501P
0.5 – 25 μm @ 0.1 CFM
![particles-plus-2000-series-remote-particle-counter particles plus 2000 series remote particle counter](https://particlesplus.com/wp-content/uploads/2022/04/particles-plus-2000-series-remote-particle-counter.jpg)
Model 2510
0.5 – 25 µm @ 1.0 CFM
![particles-plus-2000-series-remote-particle-counter particles plus 2000 series remote particle counter](https://particlesplus.com/wp-content/uploads/2022/04/particles-plus-2000-series-remote-particle-counter.jpg)
Model 2510-2
0.5 – 25 μm @ 1.0 CFM
![particles-plus-8306-handheld-particle-counter particles plus 8306 handheld particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-8306-handheld-particle-counter.jpg)
Model 8306
0.3 – 25 µm @ 0.1 CFM
![particles-plus-8506-handheld-particle-counter-1 particles plus 8506 handheld particle counter 1](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-8506-handheld-particle-counter-1.jpg)
Model 8506
0.5 – 25 μm @ 0.1 CFM
![particles-plus-8303-handheld-particle-counter particles plus 8303 handheld particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-8303-handheld-particle-counter.jpg)
Model 8303
0.3 – 25 μm @ 0.1 CFM
![particles-plus-8303-handheld-particle-counter particles plus 8303 handheld particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-8303-handheld-particle-counter.jpg)
Model 8503
0.5 – 25 μm @ 0.1 CFM
![particles-plus-8306-handheld-particle-counter particles plus 8306 handheld particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-8306-handheld-particle-counter.jpg)
Model 8300
0.3 – 25 µm @ 1.2 LPM
![particles-plus-8506-handheld-particle-counter-1 particles plus 8506 handheld particle counter 1](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-8506-handheld-particle-counter-1.jpg)
Model 8506-30
0.5 – 75 μm @ 0.1 CFM
![8301-02-AQM-post 8301 02 AQM post](https://particlesplus.com/wp-content/uploads/2020/07/8301-02-AQM-post.png)
Model 8301-AQM
0.3 – 25 μm @ 0.1 CFM
![particles-plus-7301-remote-particle-counter particles plus 7301 remote particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-7301-remote-particle-counter.jpg)
Model 7301
0.3 – 25 µm @ 0.1 CFM
![particles-plus-7301-remote-particle-counter particles plus 7301 remote particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-7301-remote-particle-counter.jpg)
Model 7501
0.5 – 25 μm @ 0.1 CFM
![particles-plus-7301-remote-particle-counter particles plus 7301 remote particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-7301-remote-particle-counter.jpg)
Model 7300
0.3 – 25 μm @ 1.2 LPM
![particles-plus-7301-remote-particle-counter particles plus 7301 remote particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-7301-remote-particle-counter.jpg)
Model 7501-30
0.5 – 75 μm @ 0.1 CFM
![particles-plus-7301-remote-particle-counter particles plus 7301 remote particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-7301-remote-particle-counter.jpg)
Model 7301-AQM
0.3 – 25 µm @ 0.1 CFM
![particles-plus-5301P-remote-particle-counter-1 particles plus 5301P remote particle counter 1](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-5301P-remote-particle-counter-1.jpg)
Model 5301P
0.3 – 25 µm @ 0.1 CFM
![particles-plus-5301-remote-particle-counter particles plus 5301 remote particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-5301-remote-particle-counter.jpg)
Model 5301
0.3 – 25 μm @ 0.1 CFM
![particles-plus-5301P-remote-particle-counter-1 particles plus 5301P remote particle counter 1](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-5301P-remote-particle-counter-1.jpg)
Model 5501P
0.5 – 25 μm @ 0.1 CFM
![particles-plus-5301-remote-particle-counter particles plus 5301 remote particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-5301-remote-particle-counter.jpg)
Model 5501
0.5 – 25 μm @ 0.1 CFM
![particles-plus-5301P-remote-particle-counter-1 particles plus 5301P remote particle counter 1](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-5301P-remote-particle-counter-1.jpg)
Model 5300P
0.3 – 25 µm @ 1.2 LPM
![particles-plus-5301-remote-particle-counter particles plus 5301 remote particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-5301-remote-particle-counter.jpg)
Model 5501-30
0.5 – 75 μm @ 0.1 CFM
![particles-plus-5301P-remote-particle-counter-1 particles plus 5301P remote particle counter 1](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-5301P-remote-particle-counter-1.jpg)
Model 5301-AQM
0.3 – 25 μm @ 0.1 CFM
![particles-plus-5301-remote-particle-counter particles plus 5301 remote particle counter](https://particlesplus.com/wp-content/uploads/2018/09/particles-plus-5301-remote-particle-counter.jpg)
Model 5510
0.5 – 25 μm @ 1 CFM
![9000 series for datasheets 9000 series for datasheets](https://particlesplus.com/wp-content/uploads/2022/01/9000-series-for-datasheets.jpg)
Model 9301
0.3 – 25 µm @ 0.1 CFM
![9000 series for datasheets 9000 series for datasheets](https://particlesplus.com/wp-content/uploads/2022/01/9000-series-for-datasheets.jpg)
Model 9501
0.5 – 25 μm @ 0.1 CFM
![9000 series for datasheets 9000 series for datasheets](https://particlesplus.com/wp-content/uploads/2022/01/9000-series-for-datasheets.jpg)
Model 9510
0.5 – 25 μm @ 1.0 CFM
![Particles-Plus-9000P-series-remote-particle-counter Particles Plus 9000P series remote particle counter](https://particlesplus.com/wp-content/uploads/2022/04/Particles-Plus-9000P-series-remote-particle-counter.jpg)
Model 9301P
0.3 – 25 μm @ 0.1 CFM
![Particles-Plus-9000P-series-remote-particle-counter Particles Plus 9000P series remote particle counter](https://particlesplus.com/wp-content/uploads/2022/04/Particles-Plus-9000P-series-remote-particle-counter.jpg)
