5501-30 Large Particle Counter

particles plus 5301 remote particle counter

Model 5501-30

0.5 – 75 µm @ 0.1 CFM

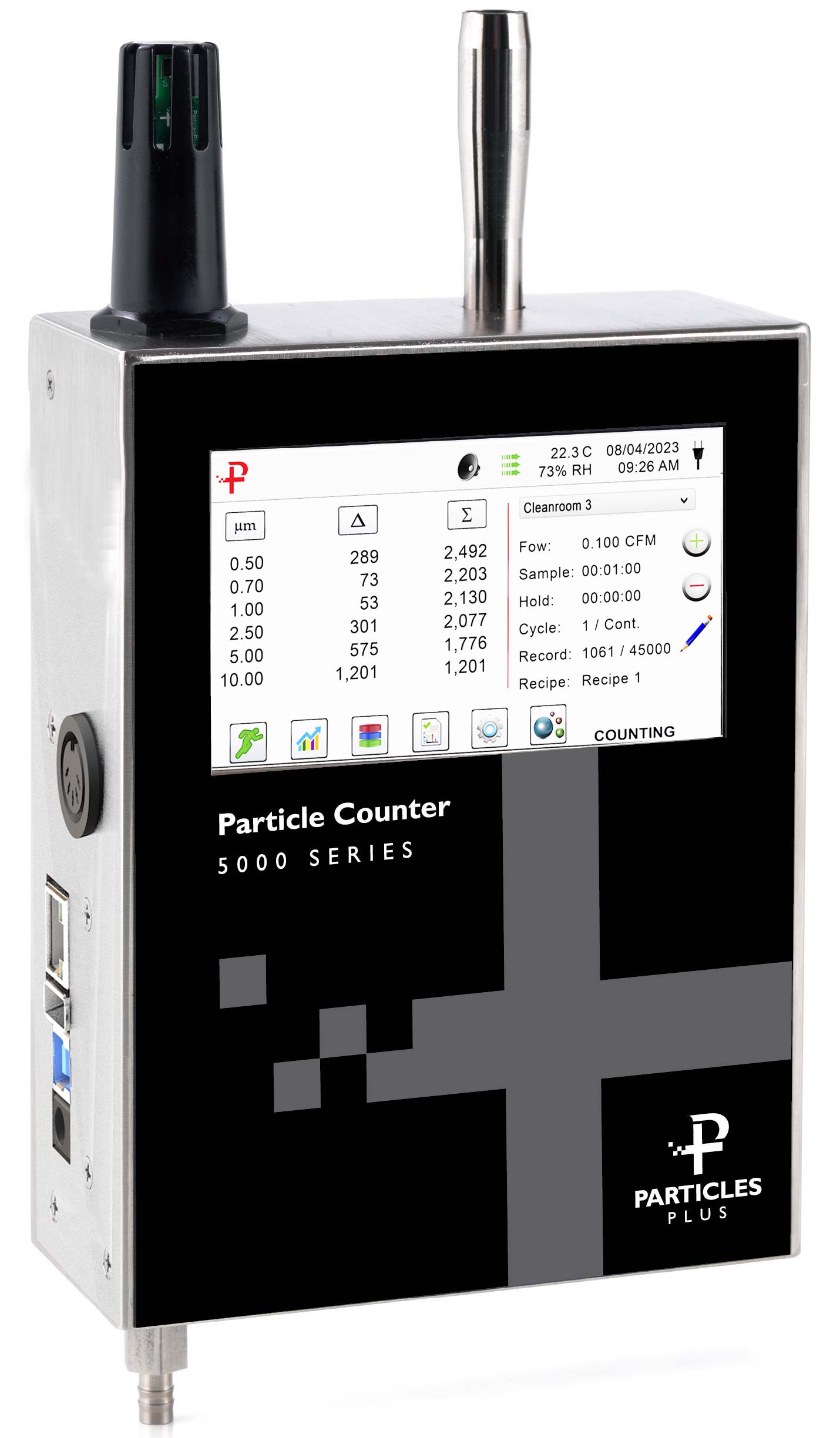

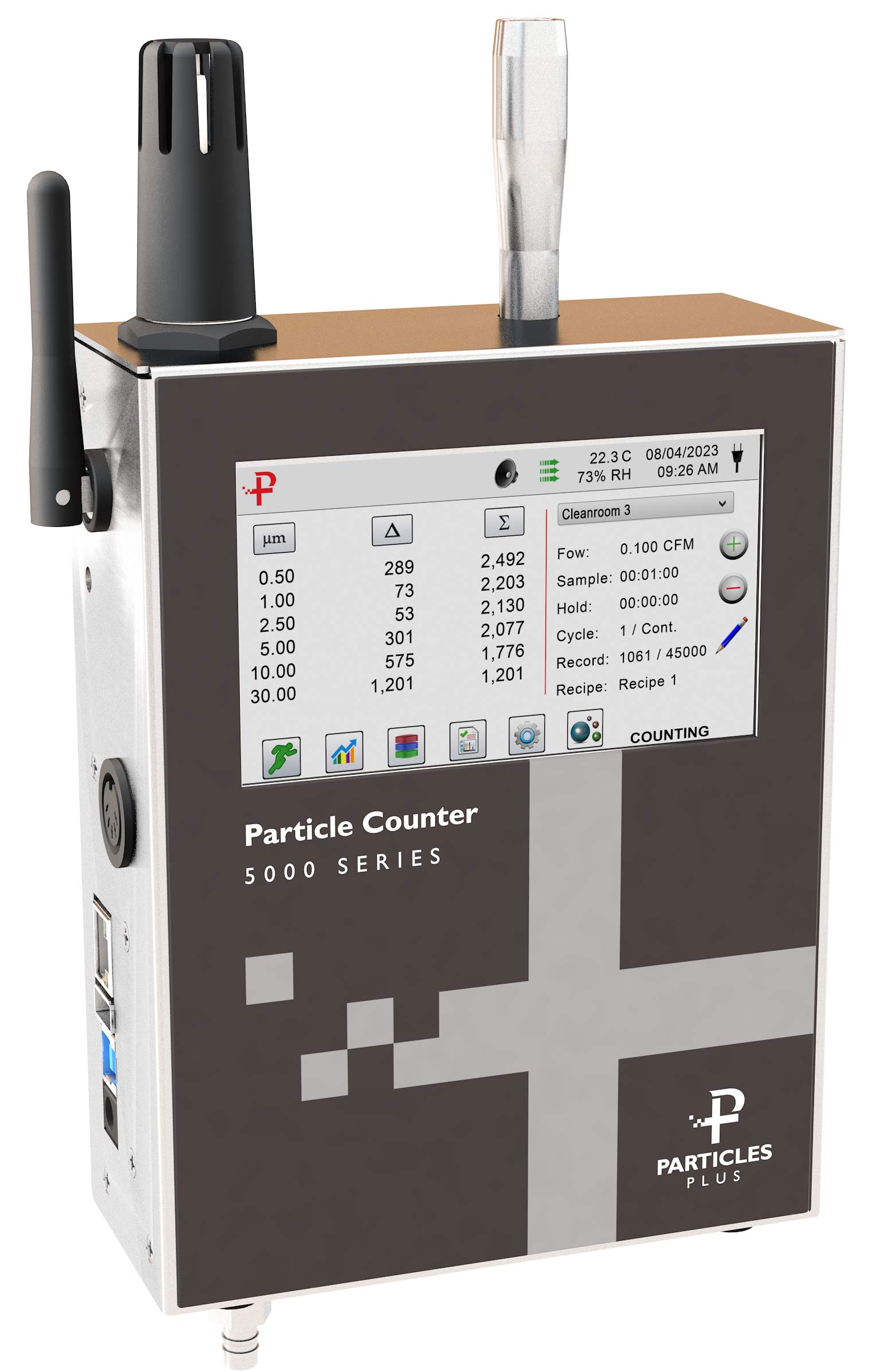

The Particles Plus® 5501-30 Remote Particle Counter measures 0.5 to 75.0 µm with a flow rate of 0.1 CFM (2.83 LPM) from an external vacuum pump, and is the most feature-advanced remote particle counters available. Integration is easy into a building automation and clean room management system via Ethernet, or (optional) Wireless 802.11 b/g, RS485 or RS232.

The 5501-30 remote particle counter displays and reports 6 user-selectable particle size channels, as well as (optional) temperature and relative humidity, flow and sensor status, date of last calibration, serial number, laser on-time and date of manufacture for easy maintenance and warranty management. This remote particle counter stores up to 45,000 time stamped particle count and environmental data records which provide data redundancy on every instrument. Particles Plus® counters can be monitored remotely via web browser, or controlled and monitored using IMS Software.

All Particles Plus® counters meet ISO 21501-4 and JIS B9921. The 5501-30 ensures compliance with an on-board pulse height analyzer.

Measures 0.5 μm to 75 μm
0.1 CFM (2.83 LPM) flow rate
Long-life laser diode technology
Measures up to 6 channels of simultaneous data
Approximates mass concentration in μg/m³
Large easy-to-use icon driven color touch screen display
(Optional) temperature and relative humidity probe
(Optional) internal vacuum pump
Stores up to 45,000 sample records for on-board data redundancy
Easy configuration and transferable from instrument to instrument
Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232.
Static or dynamic IP address (DHCP)
Internal audible alarm
User-selectable channel sizes
Complies with ISO 21501-4 and JIS B9921 standards
Easy to clean and wipe down with minimal particle traps
Versatile mounting options
Seamless integration into a facility monitoring system
Light weight stainless steel enclosure

2 year limited warranty. Extended warranties available.

Size Range0.5 to 75 µm
Size ChannelsFactory calibrated at 0.5, 1.0, 2.5, 5.0, 10.0, 30.0 µm Variable binning - user defined channel sizes
Counting Efficiency50%@ 0.5 µm; 100% for particles >O. 75 µm per JIS
Flow rates0.1 CFM (2.83 LPM)
Concentration Limit15,000,000 Particles/ft3@ 10% coincidence loss
Light SourceLong life laser diode
Zero Count<1 count / 60 minutes (<1 particles / 6 ft³). No fault count subtraction.
Count ModesReal-Time Meter and graph, cumulative/differential count/ni' and count/ft3, and mass concentration (PM)
Count Alarms1 to 9,999,999 counts
CalibrationNIST traceable
Display4.3" (10.9 cm) WQVGA(480x272) color touch screen
Vacuum SourceExternal pump
Number of Channels6
Custom Size ChannelsCalibration for custom size channels available
AirflowInternally monitored
Audible AlarmAdjustable built-in alarm
Communication ModesEthernet and USB. (Optional) Wireless 802.11 b/g, RS485 or RS232.
Environmental Sensor(Optional) Temp and RH probe 32° to 122°F (0° to 50°C) ±1°F (0.5°C), 15-90% ±2% relative humidity
AlarmAlarms on counts for all particle sizes, sensor failure, environmental sensors and flow
StandardsISO 21501-4 and JIS B9921
Instrument CalibrationRecommended minimum once per year
External SurfaceStainless steel
Dimensions (L xW x H)5.22" x2.25" x 9.13" (13.3 cm x 5.7 cm x 23.2 cm) includes barb fittings
Weight2.6 lb (1.18 kg)
AccessoriesOperating manual and IMS Software on USB flash drive, isokinetic probe, power supply and cable
Optional AccessoriesPrinted manual, temperature relative humidity sensor, isokinetic probes, barb fittings, filter, data cable, mounting bracket and sample tubing, IMS-RT monitoring system
Buffer Memory45,000 sample records (rotating buffer) including particle count data, environmental data, locations, annotations, and times. Scrollable on screen or printout.
Sample Time1 second to 99 hours
Power110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions41 ° to 104°F (5° to 40°C) / 20% to 95% non-condensing
Storage Conditions32° to 122°F (0° to 50°C) / Up to 98% non-condensing
Warranty2 year limited warranty. Extended warranties available.

5501 30

AS 99002 Filter 0.1 CFM 2.83 LPM
EE 80014A Temperature Humidity Probe
AS 99001 Remote Mounting Bracket
EE 80093 Wireless 802.11 b g Output with Antenna

0.1 CFM (2.83 LPM)
Part Number: AS-99002

Temperature and Humidity Probe
Part Number: EE-80014A

Remote Mounting Bracket Part Number: AS-99001

Wireless 802.11 b/g with Output Antenna
Part Number: EE-80092

PS 12041 Isoprobe Threaded 0.1 CFM 2.83 LPM Ni Plated Al
PS 12070 Isoprobe Threaded 0.1 CFM 2.83 LPM Stainless
PS 12022 Isoprobe Barbed 0.1 CFM 2.83 LPM Stainless
PS 12005 0.125 inch Inlet fitting

Isoprobe Threaded (Ni Plated Al)
0.1 CFM (2.83 LPM)
Part Number: PS-12041

Isoprobe Threaded (Stainless)
0.1 CFM (2.03 LPM)
Part Number: PS-12070

Isoprobe Barbed (Stainless)
0.1 CFM (2.83 LPM)
Part Number: PS-12022

Inlet Fitting Barbed
1/8 (Stainless)
Part Number: PS-12005

AS 99019 Sample Tubing .375 OD x .250 ID
AS 99019 Sample Tubing .375 OD x .250 ID
AS 99037 Tubing .375 OD .250 ID Bev A Line XX per foot
AS 99037 Tubing .375 OD .250 ID Bev A Line XX per foot

Tubing (per foot)
3/8" OD (1/4" ID)
Part Number: AS-99019

Tubing (per foot)
1/4" OD (1/8" ID)
Part Number: AS-99018

Tubing (per foot)
3/8" OD (1/4" ID) Bev-A-Line XX
Part Number: AS-99037

Tubing (per foot)
1/4" OD (1/8" ID) Bev-A-Line XX
Part Number: AS-99036

AS 99022 USB Cable 6ft 1.8m
EE 80081 Power Supply 12V 2A 100 240 VAC
EE 80130 Power Connector UK MY SG
EE 80131 Power Connector Australia China

USB Cable
6ft (1.8m)
Part Number: AS-99022

Power Supply
15V ~2A 100-240 VAC
Part Number: EE-80127

Power Supply Connector
UK, Malaysia & Singapore
Part Number. EE-80130

Power Supply Connector
China & Australia
Part Number: EE-80131

EE 80129 Power Connector EU Korea
EE 80128 Power Connector USA Japan
PP Manual 1
PP Manual 1

Power Supply Connector
Europe & Korea
Part Number: EE-80129

Power Supply Connector
USA, Japan, Philippines, Taiwan
Part Number: EE-80128

5000 Series
User Manual (Printed)
Part Number: MN-24004P

5000 Series
Validation Manual
Part Number: MN-24006

MN 2400X Instrument Management Software User Manual

IMS Software & User Manual (USB Key)
Part Number: MN-24004
